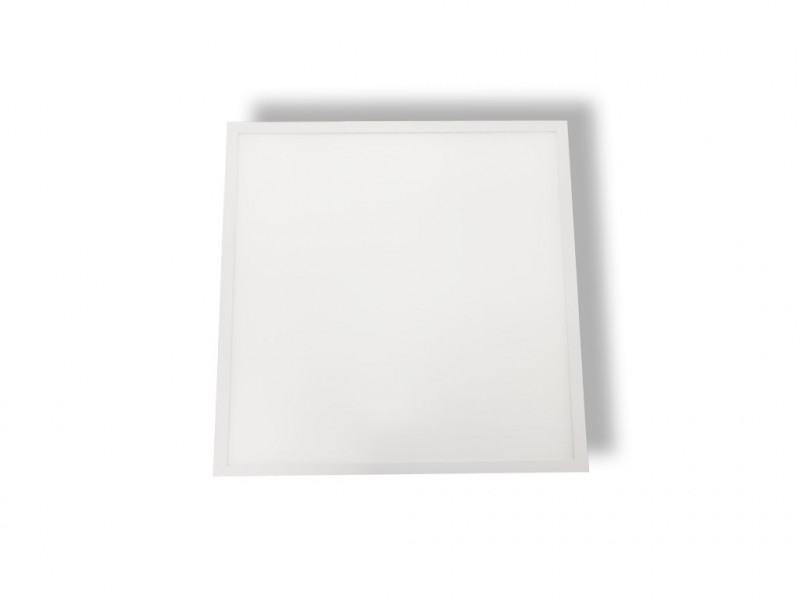

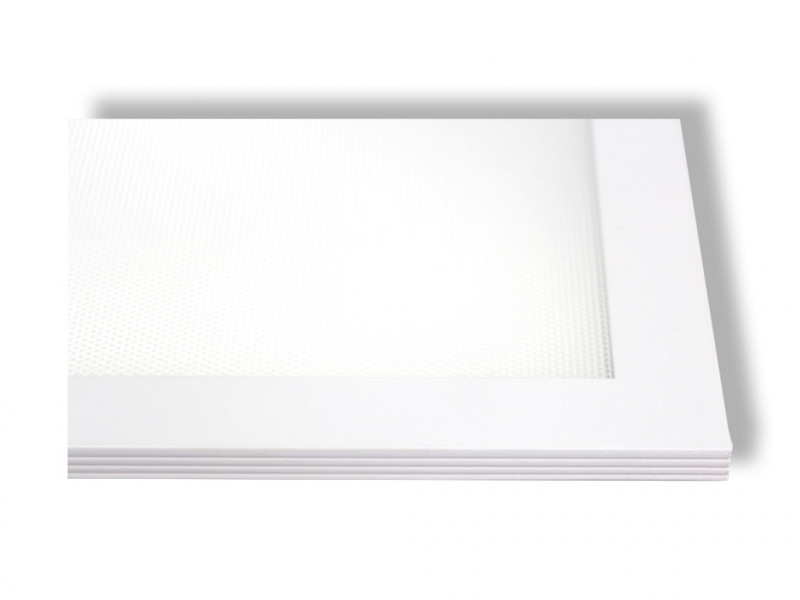

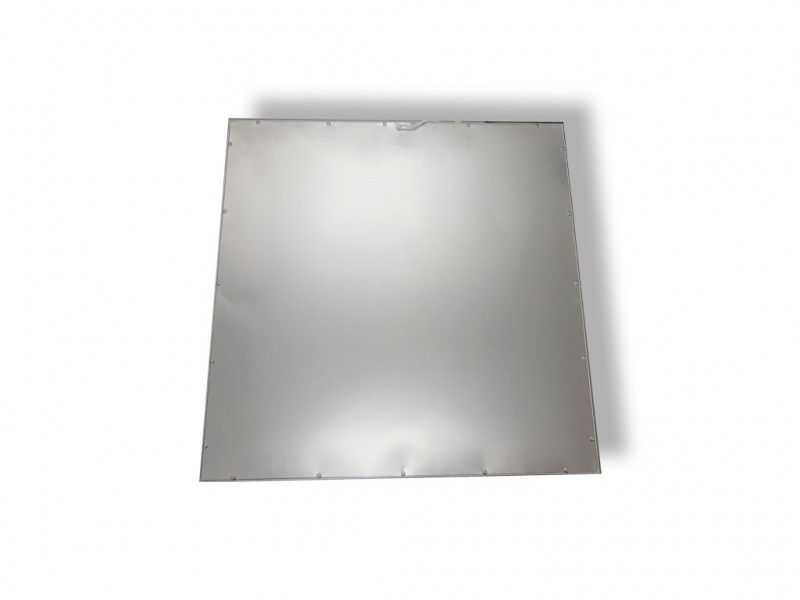

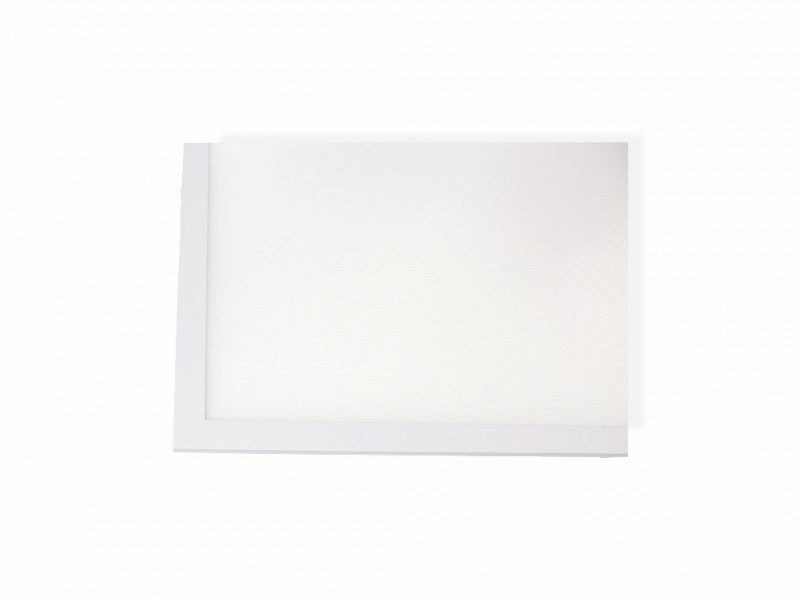

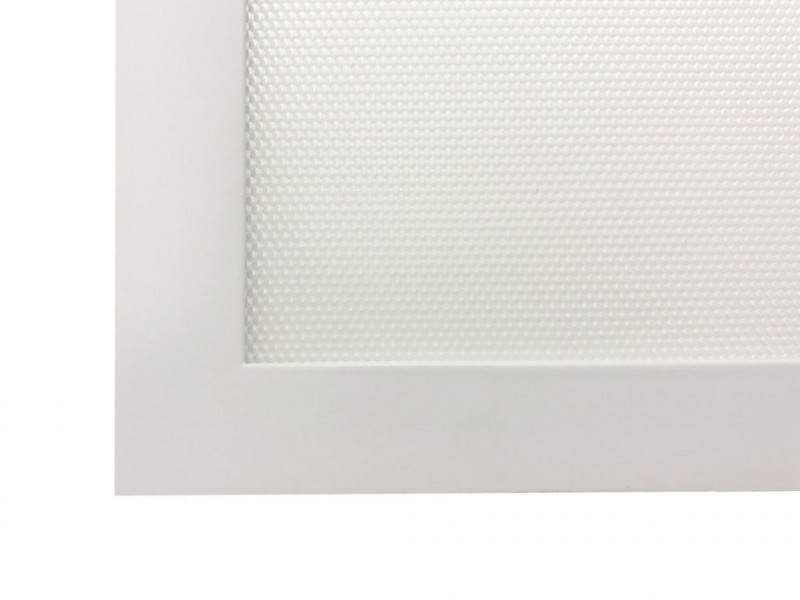

Cetara Office 3060 BAP 32-830-3520LM

LG59040
Available soon
Prices are only visible after login.

Availability: on request

Dimensions

Dimensions
  • LG59040
  • Luminous Flux: 4320 lm
  • Power Draw: 36 W
  • Light Color: warmwhite (3000 K)
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20 (44 room side)
  • Beam Angle: 90°
  • LED-Chip: Everlight SMD 4014
  • Housing Color: white
  • Dimensions: 595x595x10 mm
  • Warranty: 3 years

Luminous Flux

4320
lm

Power Draw

36 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

IP Class Room Side

IP 44
room side

Beam Angle

90°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
595x595x10

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Panel   Litegear® Cetara LED panels are made to be installed in to... more
Product information "Cetara Office 3060 BAP 32-830-3520LM"
LED Panel

Litegear® Cetara LED panels are made to be installed in to ceilings or to be hung with clips on walls or ropes on ceilings. LED panels have a low power consumption and a long lifespan compared to traditional flourescent luminaires. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. Panels create a light flooded atmosphere and look like a skywindow when illuminated. Litegear Cetara LED panels with prismatic cover are perfect to be used for computer desks in offices due to low UGR.A Cetara Panel with 36W power consumption can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 55 to 60% energy costs and lower the maintenance costs.

The Litegear LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. As an option we offer suitable LED driver in non dimming or dimming version with 1-10V, Dali, DMX, Zigbee or Push dim. Cetara Panels have a very high lumen output.
Cetara Panels have a very high lumen output.
Related links to "Cetara Office 3060 BAP 32-830-3520LM"
Technical Details:

Luminous Flux: 4320 lm
LED Output: 35 W
Light Yield: 120 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <6
Beam Angle: 90 °
Unified Glare Rating (UGR): 19
Light Emission: downward
LED-Chip Manufacturer: Everlight
LED-Chip: SMD 4014
Ignition Time: <0,5 s
Power Consumption: 36 W
Output of Driver: DC 32-42V, 500-1000mA
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >100.000
Ambient Temperature (TA): -10°C - 40°C
Storage Temperature: -20°C - 55°C
Dimensions: 595x595x10 mm
Mounting: Decke
Montageart: recessed
IP Class: 20 (44 room side)
IK Code: 02
Housing Color white
Housing Material: aluminum
Coating: powder-coated
Cover: prismatic
Net Weight: 2130 g
Type of Packaging: box
Dimensions of Packaging: 650x665x35
Weight incl. Packaging: 2.45 kg
Content Master Package: 5
Dimensions of Master Package: 650x200x650 mm
Weight Master Package: 13,3 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >50.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,D
595 x 595mm für Rasterdecken mit 60cm Achsmass
Europe Design for grid ceiling 60 x 60cm
ohne LED-Treiber!
without LED driver!
h h
LED-Panel als Ersatz für Rasterfeldleuchten, geeignet für Bildschirmarbeitsplatz more
LED-Panel als Ersatz für Rasterfeldleuchten, geeignet für Bildschirmarbeitsplatz
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 40°C
Lichtstrom: 4320 lm
LED-Leistung: 36 W
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 595x595x10 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 2130 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
