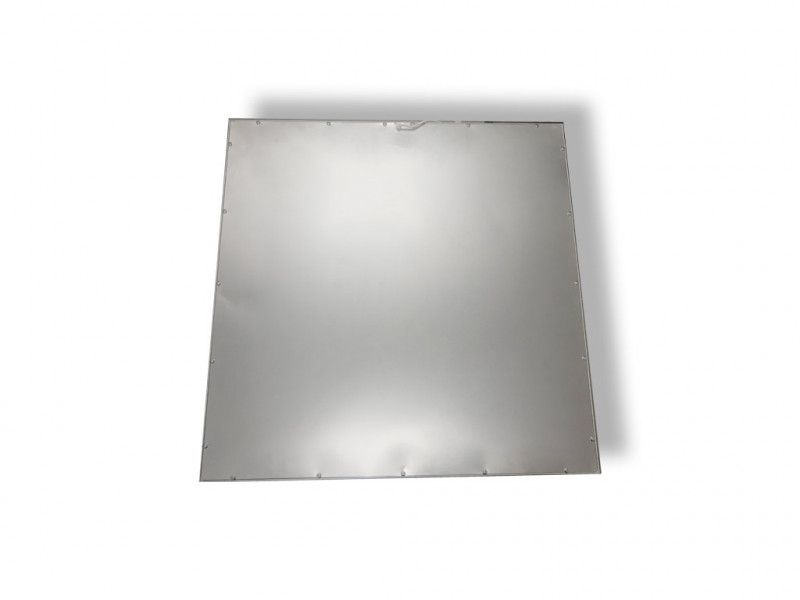

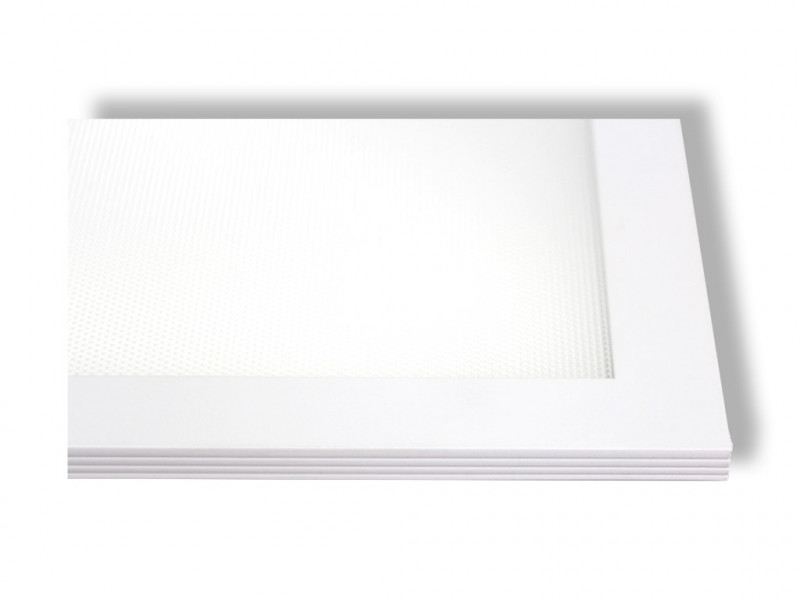

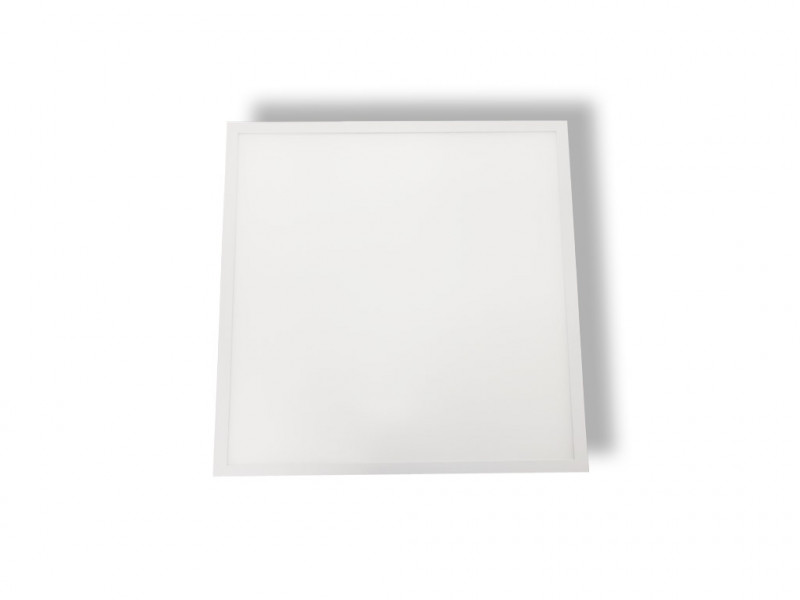

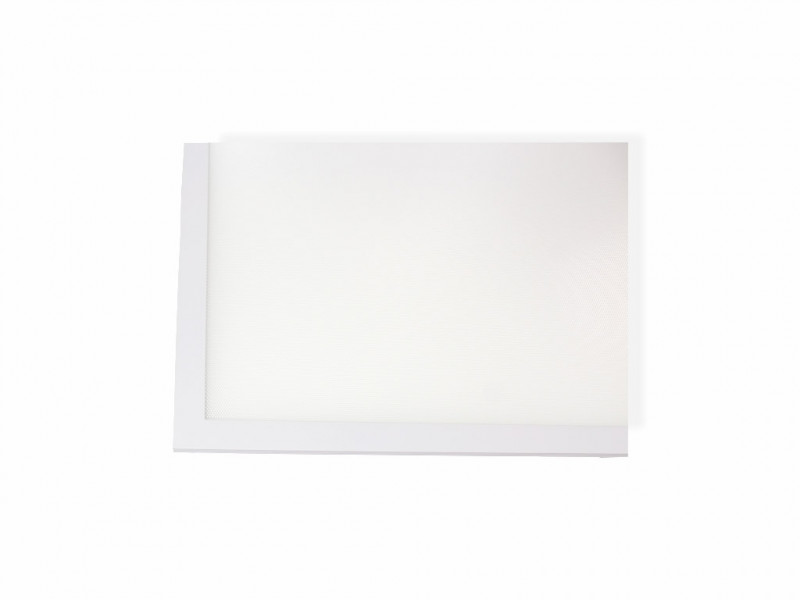

Preview: Cetara Office 6262-36-830-4320LM

Product Info (PDF)

Order number: LG59042

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG59042
Luminous Flux: 4320 lm
Power Draw: 36 W
Light Color: warmwhite (3000 K)
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20 (44 room side)

Beam Angle: 120°
LED-Chip: Everlight SMD 4014
Housing Color: white
Dimensions: 620x620x10 mm
Warranty: 5 years

Luminous Flux

4320
lm

Power Draw

36 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

IP Class Room Side

IP 44
room side

Beam Angle

120°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
620x620x10

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Panel Litegear® Cetara LED panels are made to be installed in to... more

Close menu

Product information "Cetara Office 6262-36-830-4320LM"

LED Panel

Litegear® Cetara LED panels are made to be installed in to ceilings or to be hung with clips on walls or ropes on ceilings. LED panels have a low power consumption and a long lifespan compared to traditional flourescent luminaires. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. Panels create a light flooded atmosphere and look like a skywindow when illuminated. Litegear Cetara LED panels with prismatic cover are perfect to be used for computer desks in offices due to low UGR.A Cetara Panel with 25-36W power consumption can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 60% energy costs and lower the maintenance costs.

The Litegear LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. As an option we offer suitable LED driver in non dimming or dimming version with 1-10V, Dali, DMX, Zigbee or Push dim. Cetara Panels have a very high lumen output.

Cetara Panels have a very high lumen output. up 120lm/W.

Applications:

office, conference room
corridors, entrance hall
health care, gym
storage rooms, laboratory

Related links to "Cetara Office 6262-36-830-4320LM"

Zurück

Technical Details:

Luminous Flux:	4320 lm
LED Output:	35 W
Light Yield:	120 lm/W
Light Temperature:	3000 K
Light Color:	warmwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<6
Beam Angle:	120 °
Unified Glare Rating (UGR):	22
Light Emission:	downward
LED-Chip Manufacturer:	Everlight
LED-Chip:	SMD 4014
Ignition Time:	<0,5 s

Power Consumption:	36 W
Power Factor (PF):	>0.9
Output of Driver:	DC 32-42V, 500-1000mA
CC/CV:	CC
Input Lamp:	plug connector
Switching Cycles:	>100.000
Ambient Temperature (TA):	-10°C - 40°C

Dimensions:	620x620x10 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20 (44 room side)
IK Code:	02
Housing Color	white
Housing Material:	aluminum
Coating:	powder-coated
Cover:	opal
Net Weight:	2330 g

Type of Packaging:	box
Dimensions of Packaging:	650x665x35
Weight incl. Packaging:	2.7 kg
Content Master Package:	5
Dimensions of Master Package:	665x200x665 mm
Weight Master Package:	14,3 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405 11 90 90
Certifications	CE,D
Barcode:	4250557822198
ohne LED-Treiber
without LED driver
Achtung EU-Größe nicht für deutsche Decken
EU size can not be used for German ceilings

Technical Data Sheet (PDF)

LED-Panel als Ersatz für Rasterfeldleuchten, geeignet für Bildschirmarbeitsplatz more

Zurück

LED-Panel als Ersatz für Rasterfeldleuchten, geeignet für Bildschirmarbeitsplatz
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 40°C
Lichtstrom: 4320 lm
LED-Leistung: 36 W
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 620x620x10 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 2330 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h

Zurück

Available downloads:

Download LG59042_Cetara Office 6262-36-830-4320LM (.ldt)
