Preview: Cetara Office 12431 BAP 36-840-4320LM

Product Info (PDF)

Order number: LG59044

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG59044
Luminous Flux: 4320 lm
Power Draw: 36 W
Light Color: neutralwhite (4000 K)
Input Current: AC 220-240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20 (43 room side)

Beam Angle: 90°
LED-Chip: San'an SMD
Housing Color: white
Dimensions: 1244x308x10 mm
Warranty: 5 years

Luminous Flux

4320
lm

Power Draw

36 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

IP Class Room Side

IP 43
room side

Beam Angle

90°

mounting type

Light Direction

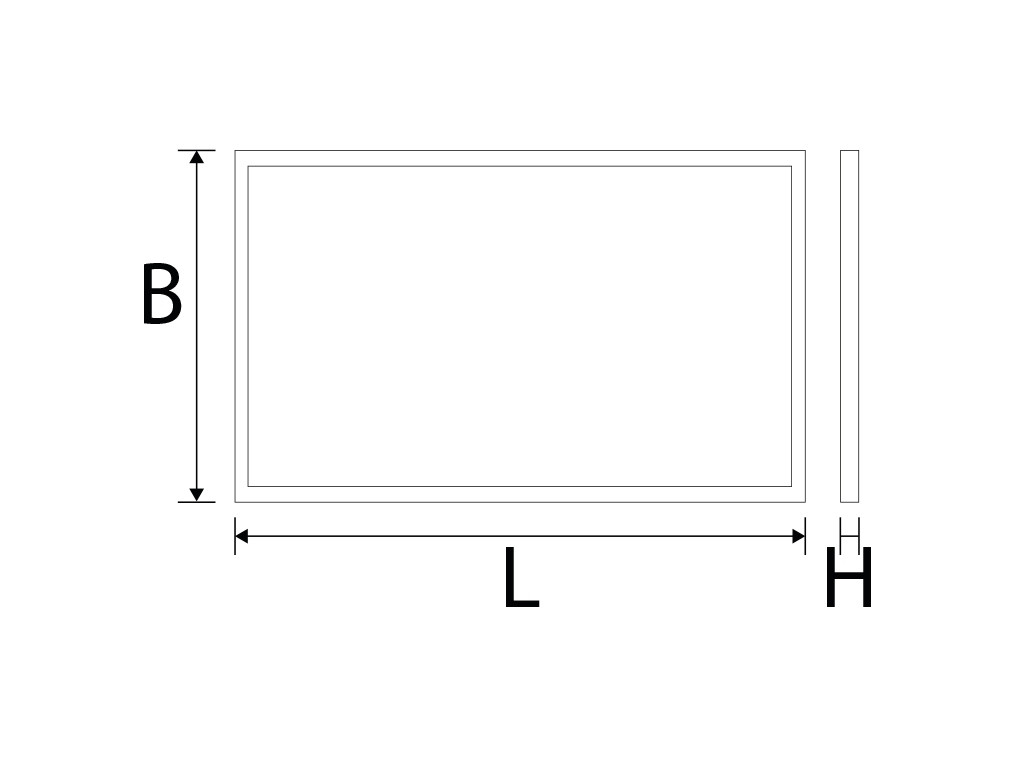

Dimensions

(LxBxH) in mm
1244x308x10

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Panel UGR19 Litegear® Cetara LED panels are made to be installed... more

Close menu

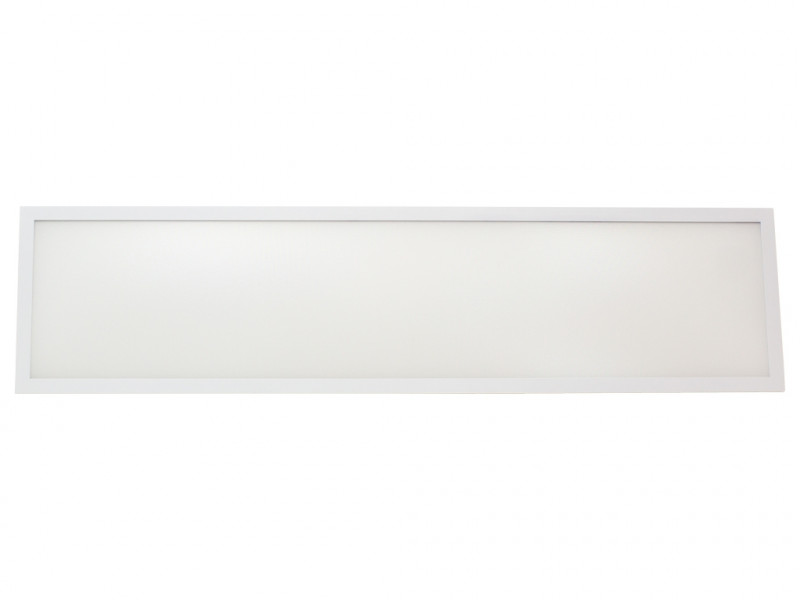

Product information "Cetara Office 12431 BAP 36-840-4320LM"

LED Panel UGR19

Litegear® Cetara LED panels are made to be installed in to ceilings or to be hung with clips on walls or ropes on ceilings. LED panels have a low power consumption and a long lifespan compared to traditional flourescent luminaires. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. Panels create a light flooded atmosphere and look like a skywindow when illuminated. Litegear Cetara LED panels with prismatic cover are perfect to be used for computer desks in offices due to low UGR.A Cetara Panel with 32W power consumption can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 60% energy costs and lower the maintenance costs.

The Litegear LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. As an option we offer suitable LED driver in non dimming or dimming version with 1-10V, Dali, DMX, Zigbee or Push dim. Cetara Panels have a very high lumen output.

Related links to "Cetara Office 12431 BAP 36-840-4320LM"

Zurück

Technical Details:

Luminous Flux:	4320 lm
Light Yield:	120 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	90 °
Unified Glare Rating (UGR):	19
Light Emission:	downward
LED-Chip Manufacturer:	San'an
LED-Chip:	SMD
Number of LED:	96
Ignition Time:	<0,5 s

Input Current:	AC 220-240V, 50/60Hz
Power Consumption:	36 W
Contains Driver:
Driver Manufacturer:	Lifud
Power Factor (PF):	>0.95

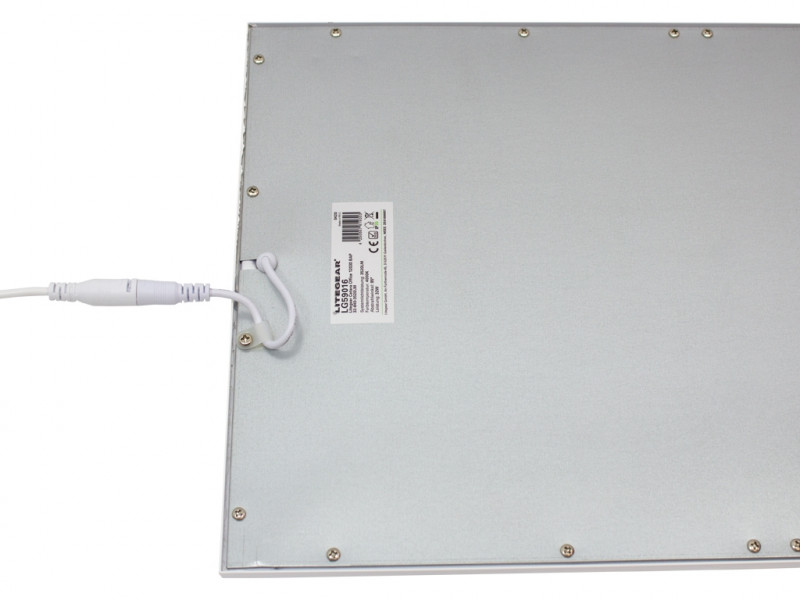

Input Driver:	cable with flying leads
Output of Driver:	DC 32-42V, 900mA
CC/CV:	CC
Input Lamp:	plug connector
Switching Cycles:	>100.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-40°C - 60°C

Dimensions:	1244x308x10 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20 (43 room side)
IK Code:	07
Housing Color	white
Housing Color (RAL Code):	similar 9016
Housing Material:	aluminum
Coating:	lacquered

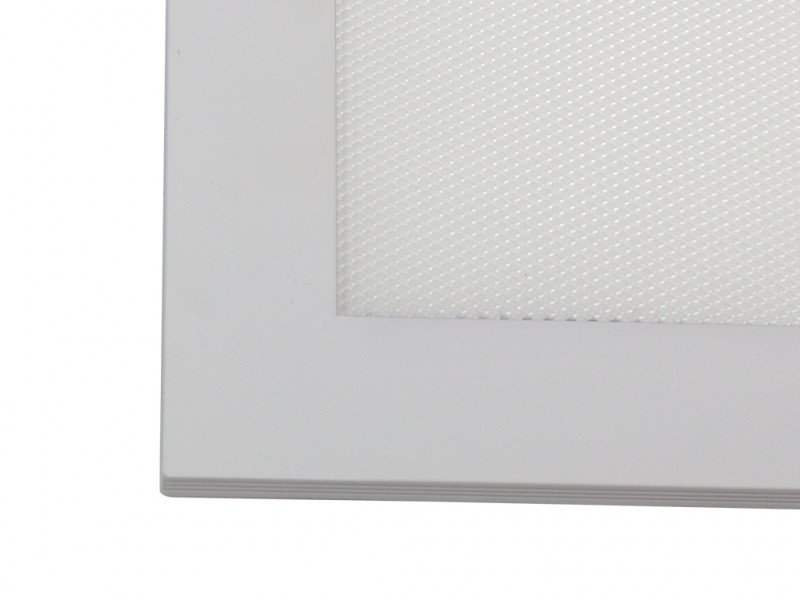

Cover:	prismatic
Net Weight:	2457 g

Type of Packaging:	box
Dimensions of Packaging:	1334x334x36
Weight incl. Packaging:	3.12 kg
Content Master Package:	5

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405 11 90 90
Certifications	CE
Barcode:	4250557822761
LED-Treiber im Lieferumfang enthalten!
incl. LED driver!
Low UGR <19 BAP
PMMA Diffusor

Technical Data Sheet (PDF)

LED-Panel als Ersatz für Rasterfeldleuchten, geeignet für Bildschirmarbeitsplatz more

Zurück

LED-Panel als Ersatz für Rasterfeldleuchten, geeignet für Bildschirmarbeitsplatz
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 4320 lm
LED-Leistung: 36 W
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 1244x308x10 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP43 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK07
Außenfarbe: white (9016)
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: prismatisch
Nettogewicht: 2457 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h

Zurück

Available downloads:

Download LG59044_ Cetara Office 12431 BAP 36-840-4320LM (.ldt)
