Lucello Advance Multi-CCT BL-Panel 6262-34-930/940-5150LM BAP UGR<19 HI CRI 150-165lm/W
Order number: LG59077
Available soon
Prices are only visible after login. ![Dimensions]( "Dimensions")
Availability: on request

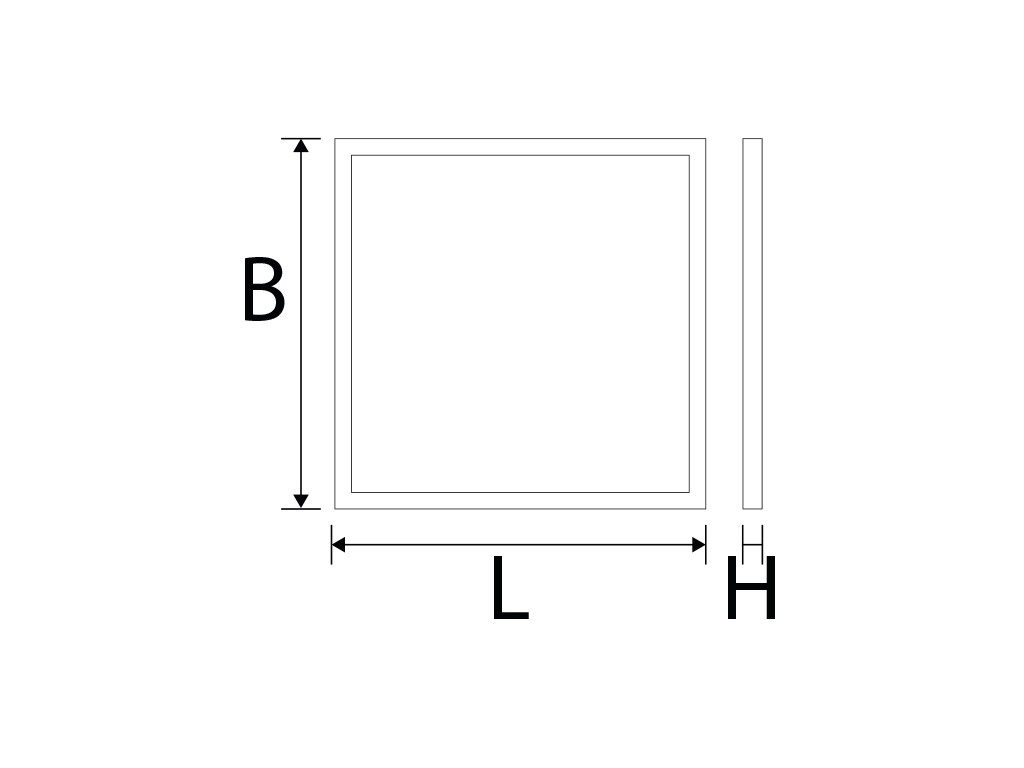

Dimensions
- Order number: : LG59077
- Luminous Flux: 5150 lm
- Power Draw: Power Select (20-34 W)
- Light Color: CCT Select (3000,3500,4000 K)
- Input Current: AC 200-240V, 170mA, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20 (44 room side)
- Beam Angle: 90°
- LED-Chip: San'an SMD2835
- Housing Color: white
- Dimensions: 620x620x34 mm
- Warranty: 5 years
LED Backlight Panel OneFitAll Litegear® Lucello Advance LED-Panel for German grid... more
Product information "Lucello Advance Multi-CCT BL-Panel 6262-34-930/940-5150LM BAP UGR<19 HI CRI 150-165lm/W"

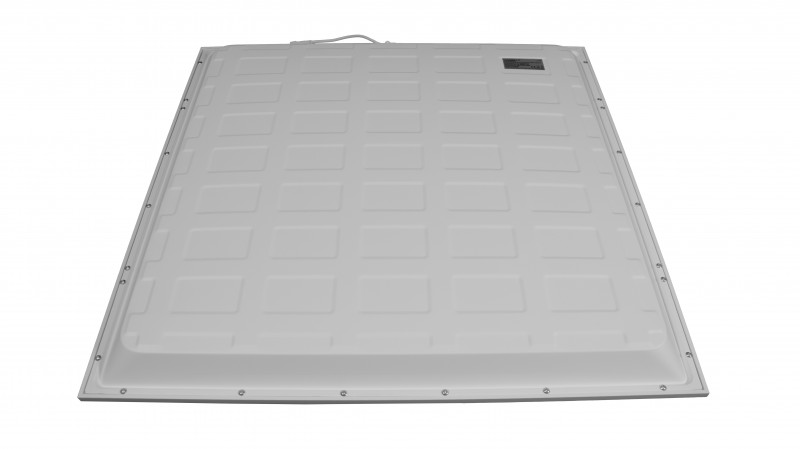

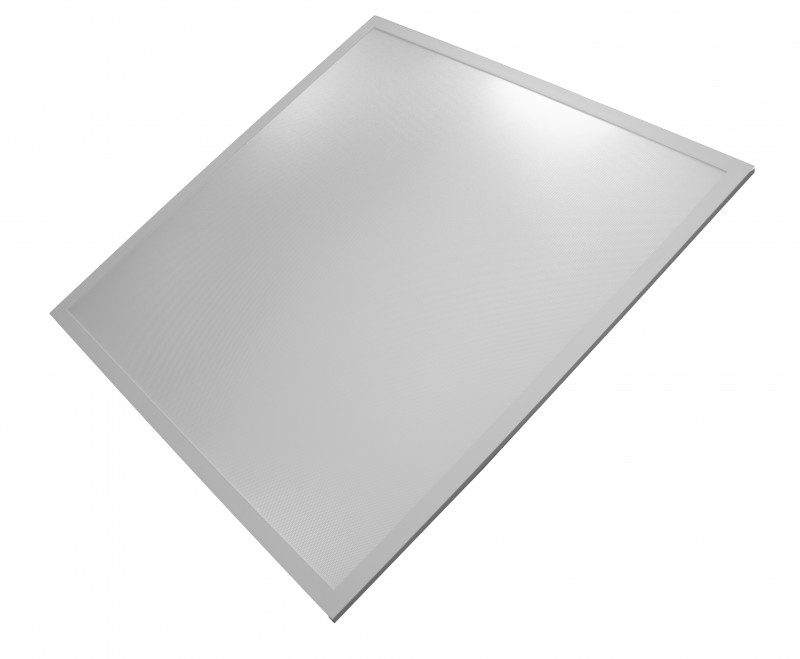

LED Backlight Panel OneFitAll
Litegear® Lucello Advance LED-Panel for German grid ceilings 62,5 x 62,5cm
For computer workstations - suitable according to EN 12464-1 for screens with high luminance with very high colour rendering indes CRI >=90!

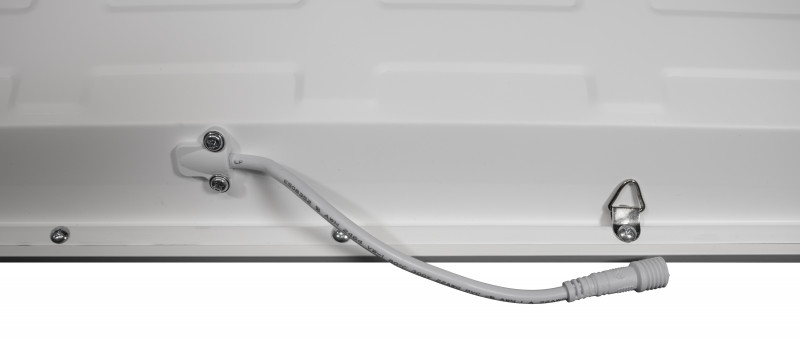

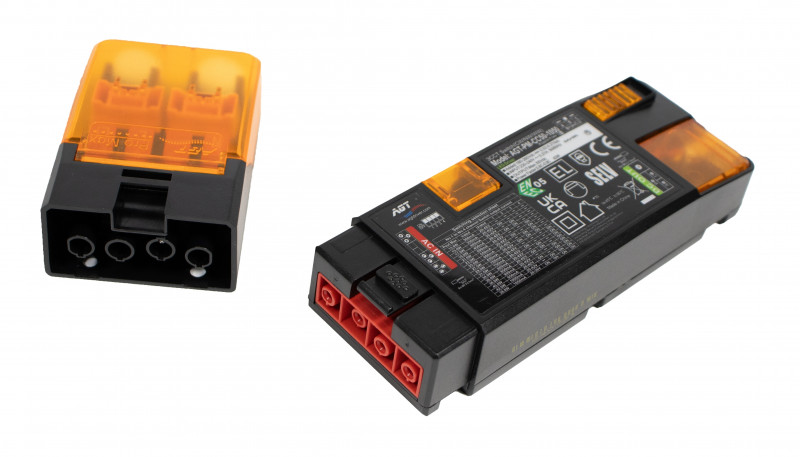

- Including innovative LED driver. CCT- and power select switche, plugable terminal box for 240V mains feed in and through
- Very low power consumption and high system efficency: 160lm/W strong light output @3500K 5440 Lumen max.
- Power Select: electronic driver with select able output power: 20-34W
- CCT Select: select able light colour by switch on the panel backside: 3000, 3500, 4000 Kelvin
- Replacment for traditional troffer lights: 4x 18W T8 flourescent tubes
- excellent price/performance ratio, fast ROI

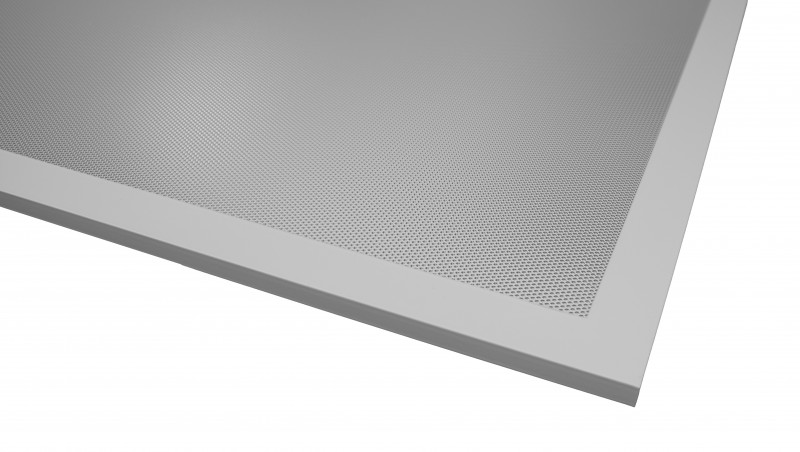

- Diffusor made from UV stabilized PS
- wide beam angle and very uniform light distribution
Applications:
Shops, corridors, production areas, storage rooms, warehouse, dressing rooms, health club, Fitness, meeting rooms, school
Related links to "Lucello Advance Multi-CCT BL-Panel 6262-34-930/940-5150LM BAP UGR<19 HI CRI 150-165lm/W"
Technical Details:
| Luminous Flux: | 5150 lm |
| Light Yield: | 165 lm/W |
| Light Temperature: | 3000,3500,4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 200-240V, 170mA, 50/60Hz |
| Power Consumption: | Power Select (20-34 W) |
| Driver Manufacturer: | AGT |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 30-38V, 500-900mA |
| CC/CV: | CC |
| Output Current Adjustable: |  |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Loop-Through Cabling: | |
| Ambient Temperature (TA): | -30°C - 45°C |
| Storage Temperature: | -40°C - 80°C |
| Dimensions: | 620x620x34 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 (44 room side) |
| IK Code: | 04 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | steel |
| Coating: | lacquered |
| Cover: | prismatic |
| Net Weight: | 1950 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 650x650x40 |
| Weight incl. Packaging: | 2.4 kg |
| Content Master Package: | 5 |
| Dimensions of Master Package: | 655x258x690 mm |
| Weight Master Package: | 13,2 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >100.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE |
| Barcode: | 4250557827612 |
| Bildschirmarbeitsplatz tauglich nach EN 12464-1 | |
| CCT-Select: schaltbare Lichtfarbe 3000,3500,4000K | |
| Power Select: 20-34W Treiber einstellbar | |
| Backlite Technology 150-160lm/W | |
| OneFitAll | |
