Lucello Multi-CCT BL-Panel 6262-36-830/840-5040LM BAP UGR<19
Order number: LG65046
Available from 08/2026
Prices are only visible after login.
Availability: on request
Dimensions
- Order number: : LG65046
- Luminous Flux: 5040 lm
- Power Draw: Power Select (24, 30, 36 W)
- Light Color: CCT Select (3000,3500,4000 K)
- Input Current: AC 220-240V, 220mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (20 room side)
- Beam Angle: 90°
- LED-Chip: Jinrui SMD
- Housing Color: white
- Dimensions: 620x620x35 mm
- Cut-Out Dimensions: 610x610 mm
- Warranty: 5 years
LED Backlight Panel Litegear® Lucello LED-Panel for German grid ceilings 62,5 x... more
Product information "Lucello Multi-CCT BL-Panel 6262-36-830/840-5040LM BAP UGR<19"

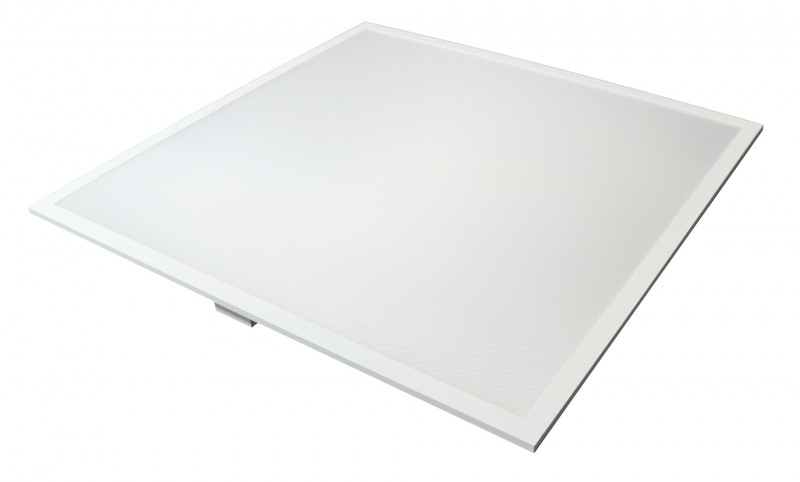

LED Backlight Panel
Litegear® Lucello LED-Panel for German grid ceilings 62,5 x 62,5cm
For computer workstations - suitable according to EN 12464-1 for screens with high luminance!
- Very low power consumption and high system efficency: 140lm/W
- Power Select: electronic driver with select able output power on the driver: 24, 30, 36W
- CCT Select: select able light colour by switch on the panel backside: 3000, 3500, 4000 Kelvin
- Replacment for traditional troffer lights: 4 x 18W T8 flourescent tubes
- excellent price/performance ratio, fast ROI

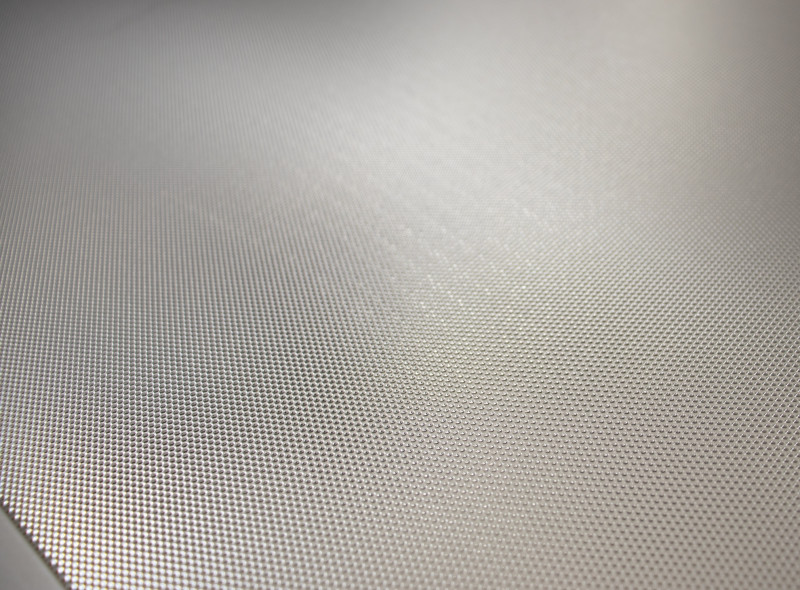

- Diffusor made from UV stabilized PS
- wide beam angle and very uniform light distribution
Applications:
Shops, corridors, production areas, storage rooms, warehouse, dressing rooms, health club, Fitness, meeting rooms, school
Related links to "Lucello Multi-CCT BL-Panel 6262-36-830/840-5040LM BAP UGR<19"
Technical Details:
| Luminous Flux: | 5040 lm |
| LED Output: | 36 W |
| Light Yield: | 140 lm/W |
| Light Temperature: | 3000,3500,4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Jinrui |
| LED-Chip: | SMD |
| Number of LED: | 128 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220-240V, 220mA, 50/60Hz |
| Power Consumption: | Power Select (24, 30, 36 W) |
| Contains Driver: | |

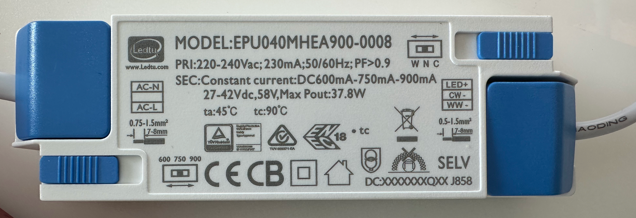

| Driver Manufacturer: | LEDTU |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 36V, 600, 750, 900mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -20°C - 40°C |

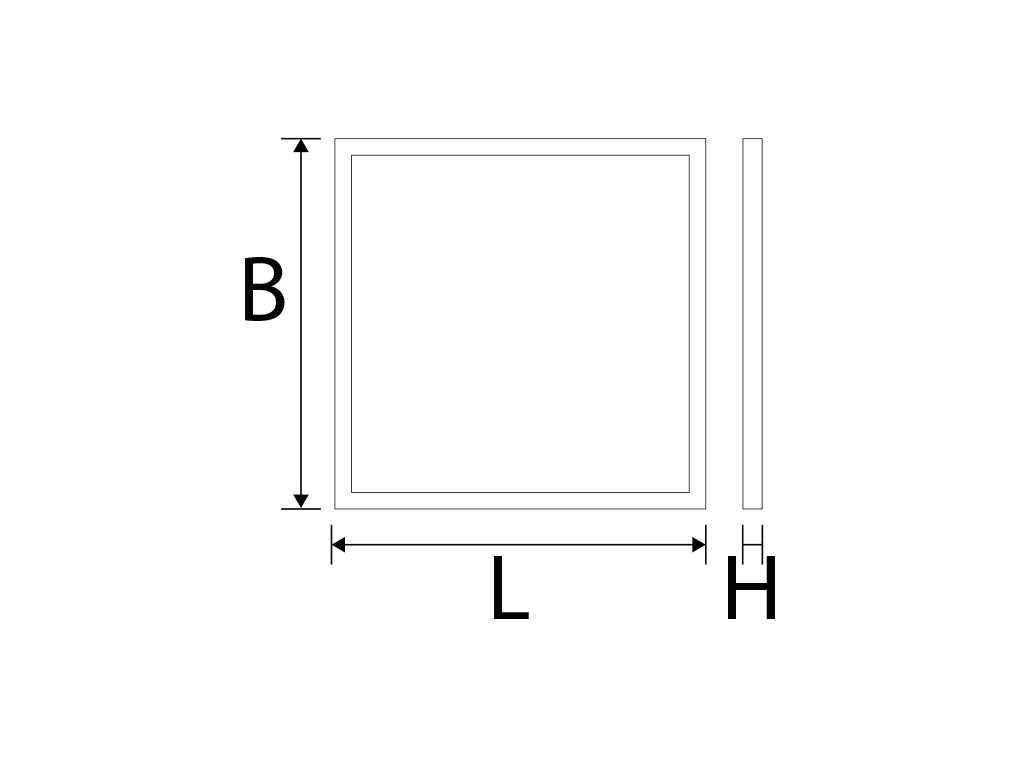

| Dimensions: | 620x620x35 mm |
| Installation Depth: | 20 mm |
| Cut-Out Dimensions: | 610x610 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 (20 room side) |
| IK Code: | 02 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9003 |
| Housing Material: | Aluminium + plastic |
| Coating: | powder-coated |
| Cover: | prismatic |
| Net Weight: | 2000 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 643x675x41 |
| Weight incl. Packaging: | 2.2 kg |
| Content Master Package: | 5 |
| Dimensions of Master Package: | 655x695x225 mm |
| Weight Master Package: | 13,5 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >70.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557827919 |
| Bildschirmarbeitsplatz tauglich nach EN 12464-1 | |
| CCT-Select: schaltbare Lichtfarbe 3000,3500,4000K | |
| Power Select: 24, 30, 36W Treiber einstellbar | |
| Backlite Technology | |
| OneFitAll | |
