RENOVIA 150/30- 40-830/840-5200LM BAP, PMMA, DALI DT6 Push DIM
Order number: LG59089DA
Available soon
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG59089DA
- Luminous Flux: 5200 lm
- Power Draw: Power Select (32,36,40 W)
- Light Color: CCT Select (3000/4000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥85 Ra
- IP Code: 20 (40 room side)
- Beam Angle: 90°
- LED-Chip: San'an SMD 2835
- Housing Color: white
- Dimensions: 1500x300x50 mm
- Warranty: 5 years
Surface mounting renovation luminaire Timeless surface mount luminaire. Easy... more
Product information "RENOVIA 150/30- 40-830/840-5200LM BAP, PMMA, DALI DT6 Push DIM"
Surface mounting renovation luminaire
Timeless surface mount luminaire. Easy install on flat surfaces such as concrete, wood or plaster boards. Fast installation due to separate ceiling mounting plate. The LED light is simply hung in the holder, easy for service! Uniform, wide light distribution with low glare due to microprismatics optical material. Optical part made of UV and temperature-resistant PS Diffusor.
Eye-friendly, flicker-free LED light. Long life electronic driver > 50,000 hours.
- Dimmable version: DALI 2, Push-Dim
- Power Select: 32, 36, 40W
- Available in 3 different sizes and power ranges.
Applications:
- Office, conference room, computer workstation BAP UGR <19 EN12464-1
- laboratory, hospital, fitness center
- hall and reception
- Sanitary facilities and corridoors
Related links to "RENOVIA 150/30- 40-830/840-5200LM BAP, PMMA, DALI DT6 Push DIM"
Technical Details:
| Luminous Flux: | 5200 lm |
| Light Yield: | 130 lm/W |
| Light Temperature: | 3000/4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥85 Ra |
| Color Consistency (SDCM): | <3 |

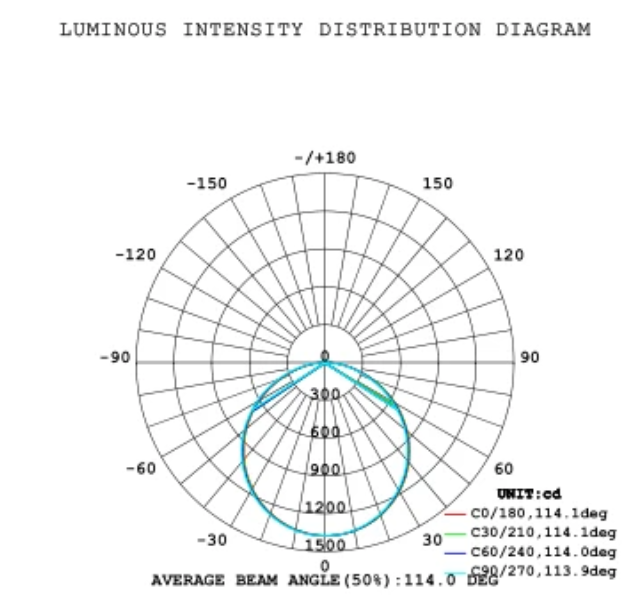

| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Number of LED: | 144 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | Power Select (32,36,40 W) |
| Contains Driver: | |
| Driver Manufacturer: | Lifud GSD040YE |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 25-42V, 850-1050mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1500x300x50 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 20 (40 room side) |
| IK Code: | 04 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | zweiget. Anbaugehäuse |
| Cover: | Mikroprismatisch PMMA |
| Net Weight: | 4260 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 5.08 kg |
| Content Master Package: | 4 |
| Dimensions of Master Package: | 1570x385x360 mm |
| Weight Master Package: | 22,3 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >70.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE |
| Barcode: | 4250557827001 |
| Anbauleuchte für Beton- Holz- oder GK- Decken | |
| Load: B10: 25, B16: 35, C16: 35 Leuchten | |
| PMMA Lightguideplate, anti yellow | |
| Bildschirmarbeitsplatztauglich DIN EN12464-1 | |
| Dali DT6 Push DIM CCT Select 3000/4000K | |
