Order number: LG30456
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG30456
- Luminous Flux: 5600 lm
- Power Draw: 39 W
- Light Color: CCT Select (4000,4500,5500 K)
- Input Current: AC 180-264maxV, 171mA, 50Hz
- Color Rendering Index (CRI): ≥83 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: Epistar SMD 2835
- Housing Color: white Alu
- Dimensions: 1225x85x78 mm
- Warranty: 5 years
Luminous Flux
5600
lm
Power Draw
39 W
Light Color
4000,4500,5500 K
CCT Select
Color Rendering Index (CRI)
CRI
>83 Ra
IP Code
IP 65
Beam Angle
120°
ceiling, wall
mounting type
Light Direction
Dimensions
(LxBxH) in mm
1225x85x78
Warranty
5 years
The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Tri-proof light The Litegear® Alvera is a stylish, waterproof LED fixture with... more

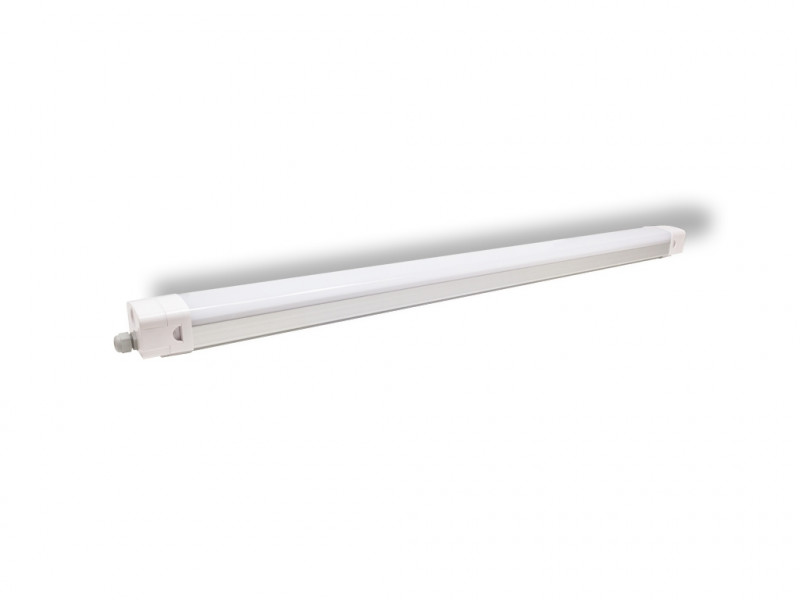

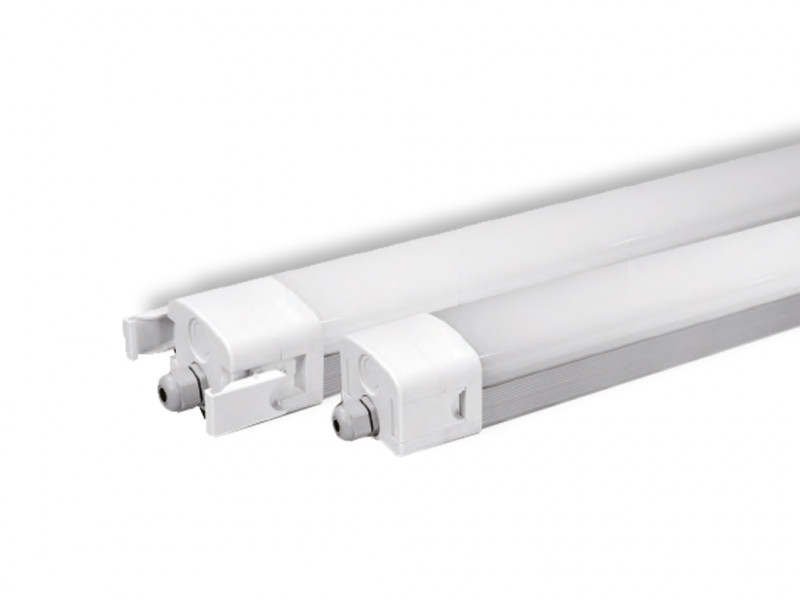

Product information "Alvera Line MKII 1200 40-CCT Select-5600LM IFS"
LED Tri-proof light
The Litegear® Alvera is a stylish, waterproof LED fixture with IP65 standard and high mechanical protection. Alvera Line LED is equipped with LED boards with very high system efficency up to 130 Lumen/Watt and available in different lengths and in different power classes.

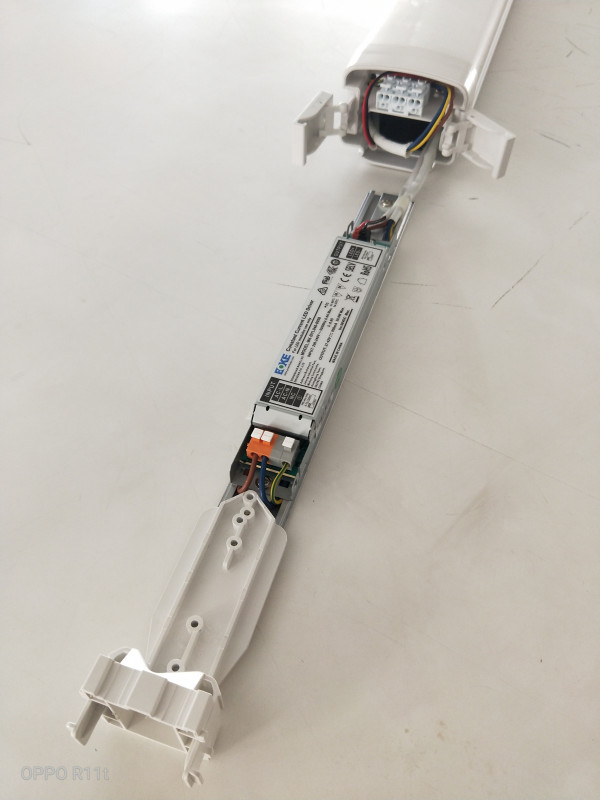

Based on a strong aluminum profile with excellent heat dissipation for long lifespan of up to 50.000 hours and a opal PC diffuser Litegear® created a unique LED weatherproof luminaire with easy and fast installation and daisy chain function trough easy access endcaps and junction terminal. The Select Version has additional CCT Select function: 4000, 5000 or 6000 Kelvin. Alvera has a fast cash back due to its excellent performance and high efficency up to 7500 Lumen. Alvera is the perfect luminaire for industrial applications in factories, warehouse, coolhouse storage, parking lots, sellers or just outside. Up to 5 years full warranty (or max. 25000 hours of use)! Alvera comes with a high quality LED driver!
Related links to "Alvera Line MKII 1200 40-CCT Select-5600LM IFS"
Technical Details:
Luminous Flux: | 5600 lm |
LED Output: | 37 W |
Light Yield: | 144 lm/W |
Light Temperature: | 4000,4500,5500 K |
Light Color: | CCT Select |
Color Rendering Index: | ≥83 Ra |
Color Consistency (SDCM): | <5 |
Beam Angle: | 120 ° |
Unified Glare Rating (UGR): | 22 |
Light Emission: | downward |
LED-Chip Manufacturer: | Epistar |
LED-Chip: | SMD 2835 |
Number of LED: | 468 |
Ignition Time: | <0,5 s |
Input Current: | AC 180-264maxV, 171mA, 50Hz |
Power Consumption: | 39 W |
Contains Driver: | |
Driver Manufacturer: | Boke |
Power Factor (PF): | >0.96 |
Input Driver: | terminal |
Output of Driver: | DC 27-40V, 950mA |
CC/CV: | CC |
Input Lamp: | Terminal |
Switching Cycles: | >50.000 |
Electrical Protection Class: | I |
Ambient Temperature (TA): | -15°C - 50°C |
Storage Temperature: | -25°C - 55°C |
Dimensions: | 1225x85x78 mm |
Mounting: | ceiling,wall |
Montageart: | surface mounted |
IP Class: | 65 |
IK Code: | 10 |
Housing Color | white Alu |
Housing Material: | aluminum |
Special Feature of Housing: | opt. Polycarbonat Cover |
Cover: | opal |
Net Weight: | 2900 g |
Type of Packaging: | box |
Dimensions of Packaging: | 1295x92x82 |
Weight incl. Packaging: | 3.125 kg |
Content Master Package: | 4 |
Dimensions of Master Package: | 1320x190x220 mm |
Weight Master Package: | 11 kg |
Product Line: | Premio Line |
Warranty | 5 years |
Operating Hours: | >50.000 h L80/B10 |
Disposal Obligation: | |
Customs Tariff Number: | 9405119090 |
Certifications | CE,LM80,D |
Barcode: | 4250557820958 |
Einfache, und schnelle Montage In/out | |
Schnellverschluß Endkappen | |
Lichtfarebe wählbar: 4000, 4500, 5500K | |
optional auch als dimmbare Version Dali, 1-10V | |
optional auch mit Bewegungsmelder lieferbar |
LED-Feuchtraumwannenleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK10 und... more
LED-Feuchtraumwannenleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK10 und optionaler Sensorik
Vorschaltgerät: LED-Treiber
Temperaturbereich: -15°C - 50°C
Lichtstrom: 5600 lm
LED-Leistung: 39 W
Leuchten-Lichtausbeute: 144 lm/W
Farbtemperatur: 4000,4500,5500 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >83
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 1225x85x78 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white Alu
Gehäusematerial: Aluminium
Abdeckung: opal
Nettogewicht: 2900 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -15°C - 50°C
Lichtstrom: 5600 lm
LED-Leistung: 39 W
Leuchten-Lichtausbeute: 144 lm/W
Farbtemperatur: 4000,4500,5500 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >83
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 1225x85x78 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white Alu
Gehäusematerial: Aluminium
Abdeckung: opal
Nettogewicht: 2900 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h

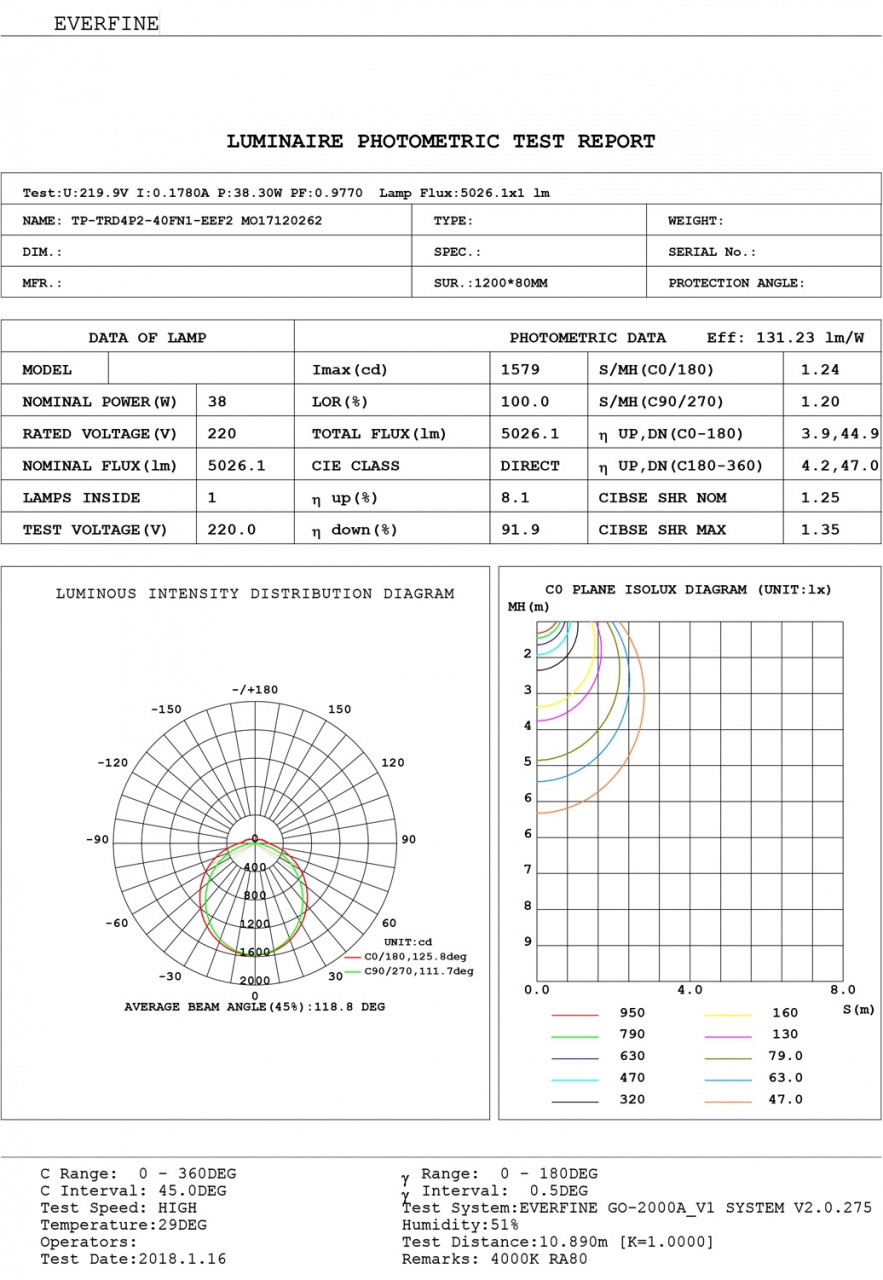

Available downloads:
- Download LG30456_Alvera Line MKII 1200 40-840-5600LM IFS 4000K (.ldt)
- Download LG30456_Alvera Line MKII 1200 40-840-5600LM IFS 4000K (.ies)
- Download LG30456_Alvera Line MKII 1200 40-840-5600LM IFS 5000K (.ldt)
- Download LG30456_Alvera Line MKII 1200 40-840-5600LM IFS 5000K (.ies)
- Download LG30456_Alvera Line MKII 1200 40-840-5600LM IFS 6000K (.ldt)
- Download LG30456_Alvera Line MKII 1200 40-840-5600LM IFS 6000K (.ies)
