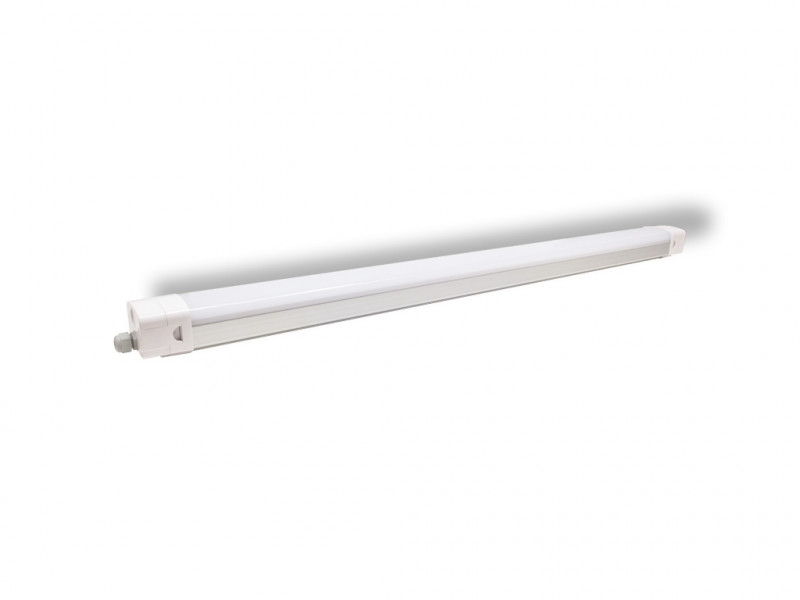

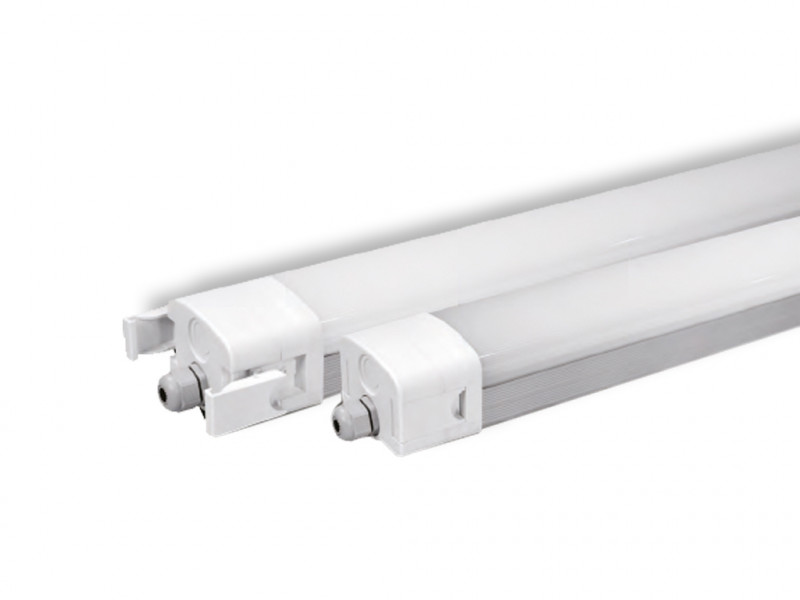

Alvera Line MKII 1500 60-CCT Select-8400LM IFS
Order number: LG30462
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG30462
- Luminous Flux: 8400 lm
- Power Draw: 59 W
- Light Color: CCT Select (4000,4500,5500 K)
- Input Current: AC 200-240V, 235mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: Epistar SMD 2835
- Housing Color: white
- Dimensions: 1525x85x78 mm
- Warranty: 5 years
LED Tri-proof light The Litegear® Alvera is a stylish, waterproof LED fixture with... more
Product information "Alvera Line MKII 1500 60-CCT Select-8400LM IFS"
LED Tri-proof light
The Litegear® Alvera is a stylish, waterproof LED fixture with IP65 standard and high mechanical protection. Alvera Line LED is equipped with LED boards with very high system efficency up to 145 Lumen/Watt and available in different lengths and in different power classes.
Based on a strong aluminum profile with excellent heat dissipation for long lifespan of up to 50.000 hours and a opal PC diffuser Litegear® created a unique LED weatherproof luminaire with easy and fast installation and daisy chain function trough easy access endcaps and junction terminal. The Select Version has additional CCT Select function: 4000, 5000 or 6000 Kelvin. Alvera has a fast cash back due to its excellent performance and high efficency up to 7500 Lumen. Alvera is the perfect luminaire for industrial applications in factories, warehouse, coolhouse storage, parking lots, sellers or just outside. Up to 5 years full warranty (or max. 25000 hours of use)! Alvera comes with a high quality LED driver!
Related links to "Alvera Line MKII 1500 60-CCT Select-8400LM IFS"
Technical Details:
| Luminous Flux: | 8400 lm |
| LED Output: | 56 W |
| Light Yield: | 142 lm/W |
| Light Temperature: | 4000,4500,5500 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Epistar |
| LED-Chip: | SMD 2835 |
| Number of LED: | 650 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 200-240V, 235mA, 50/60Hz |
| Power Consumption: | 59 W |
| Contains Driver: |  |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.98 |
| Input Driver: | terminal |
| Output of Driver: | DC 27-40V, 1450mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -15°C - 50°C |
| Storage Temperature: | -25°C - 55°C |
| Dimensions: | 1525x85x78 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 10 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | anodised |
| Special Feature of Housing: | Alu + Polycarbonat |
| Cover: | opal |
| Net Weight: | 3500 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1600x92x82 |
| Weight incl. Packaging: | 3.875 kg |
| Content Master Package: | 4 |
| Dimensions of Master Package: | 1620x190x220 mm |
| Weight Master Package: | 13,5 kg |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,LM80,D |
| Barcode: | 4250557820941 |
| Einfache, und schnelle Montage, In/Out | |
| Schnellverschluß Endkappen | |
| Farbwahl: 4000, 4500, 5500K | |
| optional auch als dimmbare Version Dali, 1-10V | |
| optional auch mit Bewegungsmelder lieferbar | |
LED-Feuchtraumwannenleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK10 und... more
LED-Feuchtraumwannenleuchte in modernem Design mit einer schlagfesten PC-Abdeckung IK10 und optionaler Sensorik
Vorschaltgerät: LED-Treiber
Temperaturbereich: -15°C - 50°C
Lichtstrom: 8400 lm
LED-Leistung: 59 W
Leuchten-Lichtausbeute: 142 lm/W
Farbtemperatur: 4000,4500,5500 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 1525x85x78 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: eloxiert
Abdeckung: opal
Nettogewicht: 3500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -15°C - 50°C
Lichtstrom: 8400 lm
LED-Leistung: 59 W
Leuchten-Lichtausbeute: 142 lm/W
Farbtemperatur: 4000,4500,5500 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 1525x85x78 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: eloxiert
Abdeckung: opal
Nettogewicht: 3500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Available downloads:
- Download LG30462_Alvera Line MKII 1500 60-840-8400LM IFS 4000K (.ldt)
- Download LG30462_Alvera Line MKII 1500 60-840-8400LM IFS 4000K (.ies)
- Download LG30462_Alvera Line MKII 1500 60-840-8400LM IFS 5000K (.ldt)
- Download LG30462_Alvera Line MKII 1500 60-840-8400LM IFS 5000K (.ies)
- Download LG30462_Alvera Line MKII 1500 60-840-8400LM IFS 6000K (.ldt)
- Download LG30462_Alvera Line MKII 1500 60-840-8400LM IFS 6000K (.ies)
