Preview: Ekova SELECT 150 30-50/830-865/6000lm

Product Info (PDF)

Order number: LG30807

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG30807
Luminous Flux: 6000 lm
Power Draw: Power Select (30, 40, 50 W)
Light Color: CCT Select (3000, 4000, 6500 K)
Input Current: AC 220 - 240V, 50/60Hz, DC 115 - 260V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 65

Beam Angle: 130°
LED-Chip: MTC SMD 2835
Housing Color: grey
Dimensions: 1500x80x77 mm
Warranty: 3 years

Luminous Flux

6000
lm

Power Draw

50 W

Light Color

3000, 4000, 6500 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

130°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1500x80x77

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

IP65 LED damp proof light OneFitAll Ekova Select by Litegear® is the perfect... more

Close menu

Product information "Ekova SELECT 150 30-50/830-865/6000lm"

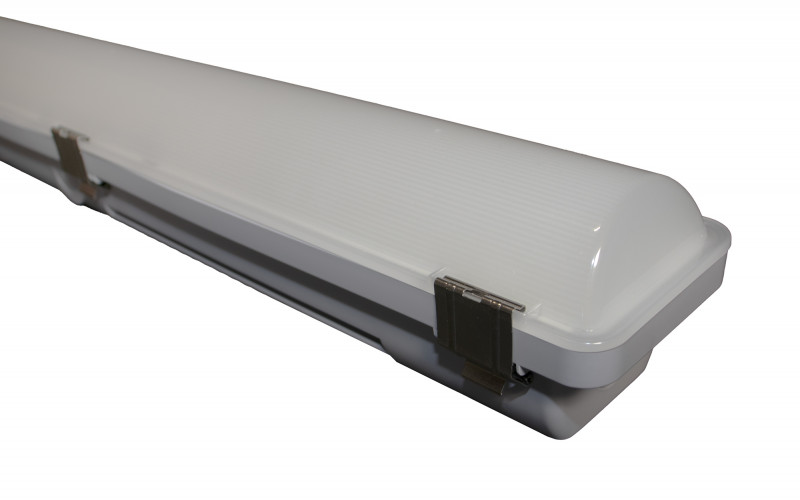

IP65 LED damp proof light OneFitAll

Ekova Select by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Ekova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Fast amortization with up to 65% electricity savings. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Ekova is very robust with IP65 ingress protection and IK08 impact class protection.

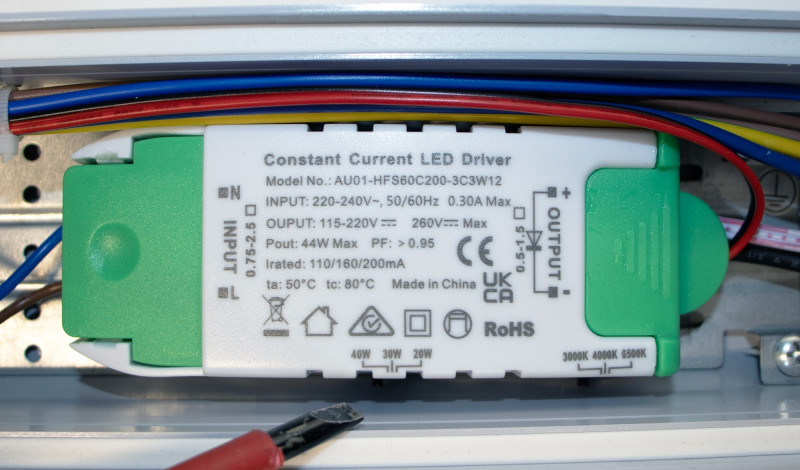

OneFitAll Edition with selectable CCT via Switsch on the LED-driver: 3000, 4000, 6500 Kelvin and power select: 30, 40, 50W = Multilumen: 4200, 5200, 6000 Lumen max. 140lm/W

Easy installtion accessory kits like motion sensor and emergency battery kit as plug and play solution. Any time easy toll free installation!

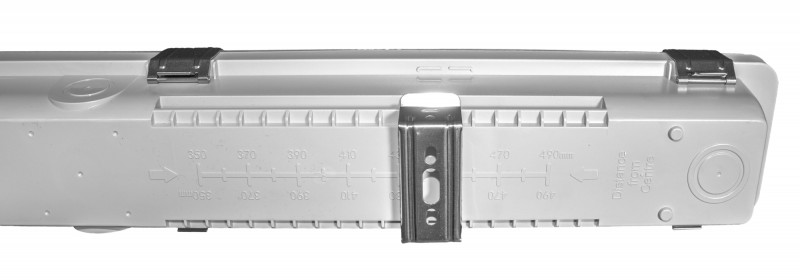

Stainless steel clips and installtion brackets with long sliding space, hence existing dowels can be used.

Advantages:

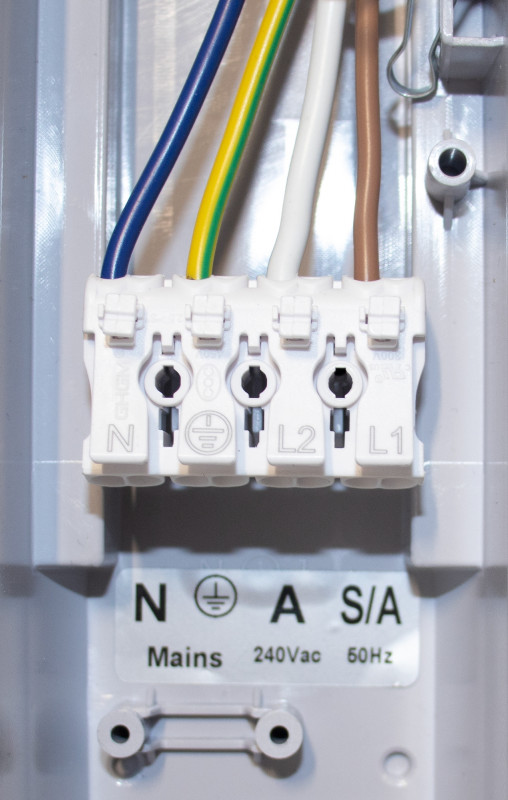

wire through 4 x 1,5mm² with 2 x terminal block 4 pin, L1, L2 permanent phase for battery emergency, N, PE 4 x 2,5mm²
flexible installation brackets and stainless steel clip lockers.

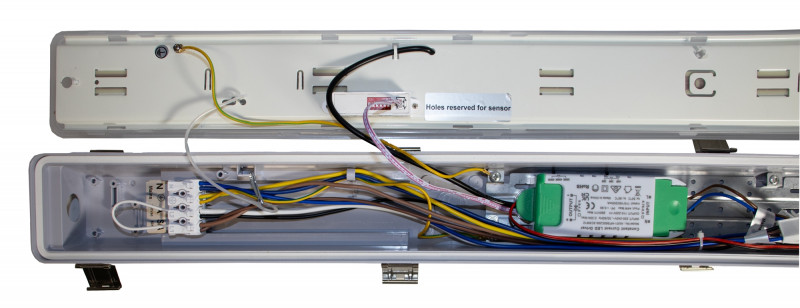

easy to change light carrier board with electrical terminal with in/out/trough link function
Low surface temperature below 80°C
also available in Dali 2.0 dimming version

Applications:

warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop

Related links to "Ekova SELECT 150 30-50/830-865/6000lm"

Zurück

Technical Details:

Luminous Flux:	6000 lm
Light Yield:	120 lm/W
Light Temperature:	3000, 4000, 6500 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<5
Beam Angle:	130 °
Light Emission:	downward
Dimmable:
Method of Dimming:	PWM
LED-Chip Manufacturer:	MTC
LED-Chip:	SMD 2835
Number of LED:	320
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220 - 240V, 50/60Hz, DC 115 - 260V
Power Consumption:	Power Select (30, 40, 50 W)
Contains Driver:
Driver Manufacturer:	Litegear
Power Factor (PF):	>0.9
Input Driver:	cable with flying leads
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Terminal
Switching Cycles:	>50.000
Electrical Protection Class:	II
Loop-Through Cabling:
Ambient Temperature (TA):	-25°C - 45°C
Storage Temperature:	-40°C - 70°C

Dimensions:	1500x80x77 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	65
IK Code:	08
Housing Color	grey
Housing Color (RAL Code):	similar 7004
Housing Material:	Polycarbonat
Special Feature of Housing:	schlagfest Edelstahlclips
Cover:	frosted
Net Weight:	1780 g

Type of Packaging:	box
Dimensions of Packaging:	1531x88x83
Weight incl. Packaging:	2.03 kg
Content Master Package:	6
Dimensions of Master Package:	1541x280x190 mm
Weight Master Package:	13,29 kg

Product Line:	Essential Line
Warranty	3 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE
Barcode:	4250557826424
Power Loop: Durchgangsverdrahtung 4 x 1,5mm²
Edelstahlverschlüsse, Durchgangsverdrahtung
Anzahl/Sicherungsautom:
Bedingt zur Verwendung im Außenbereich geeignet

Technical Data Sheet (PDF)

LED-Feuchtraumleuchte mit CCT & Power Select. Optionaler Sensor und/ oder Emergency Kit als Plug... more

Zurück

LED-Feuchtraumleuchte mit CCT & Power Select. Optionaler Sensor und/ oder Emergency Kit als Plug & Play Option.
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 45°C
Lichtstrom: 6000 lm
LED-Leistung: Power Select (30, 40, 50 W)
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 3000, 4000, 6500 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 130°
Lichtaustritt: direkt
Maße: 1500x80x77 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: grey (7004)
Gehäusematerial: Polycarbonat
Abdeckung: frost
Nettogewicht: 1780 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h

Zurück

Available downloads:
