Ekova SELECT 120 20-40/830-865/4800lm
Order number: LG30805
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG30805
- Luminous Flux: 4800 lm
- Power Draw: Power Select (20, 30, 40 W)
- Light Color: CCT Select (3000, 4000, 6500 K)
- Input Current: AC 220 - 240V, 50/60Hz, DC 115 - 260V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 130°
- LED-Chip: MTC SMD 2835
- Housing Color: grey

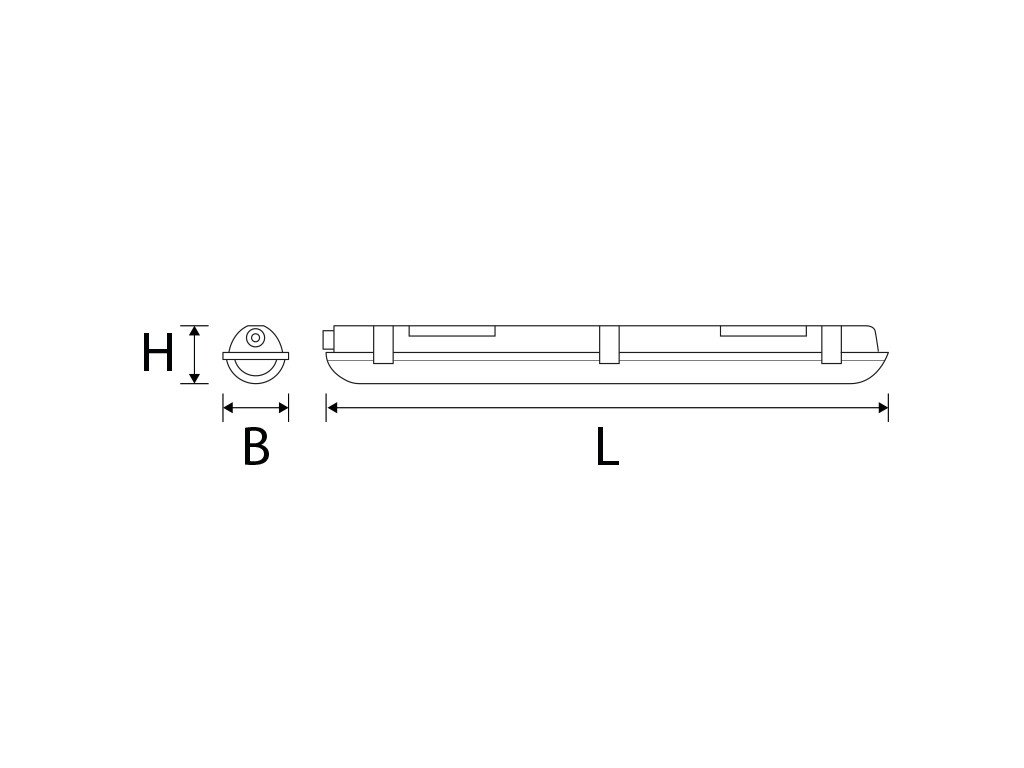

- Dimensions: 1200x80x77 mm
- Warranty: 3 years
IP65 LED damp proof light OneFitAll Ekova Select by Litegear® is the perfect... more
Product information "Ekova SELECT 120 20-40/830-865/4800lm"
IP65 LED damp proof light OneFitAll
Ekova Select by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Ekova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Fast amortization with up to 65% electricity savings. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Ekova is very robust with IP65 ingress protection and IK08 impact class protection.

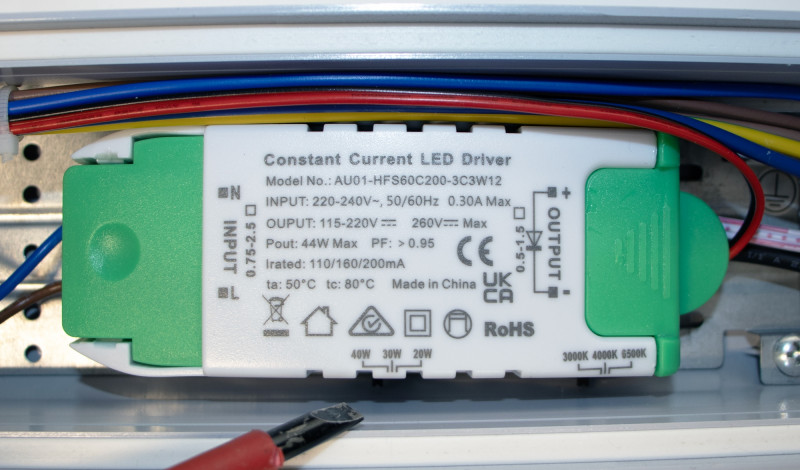

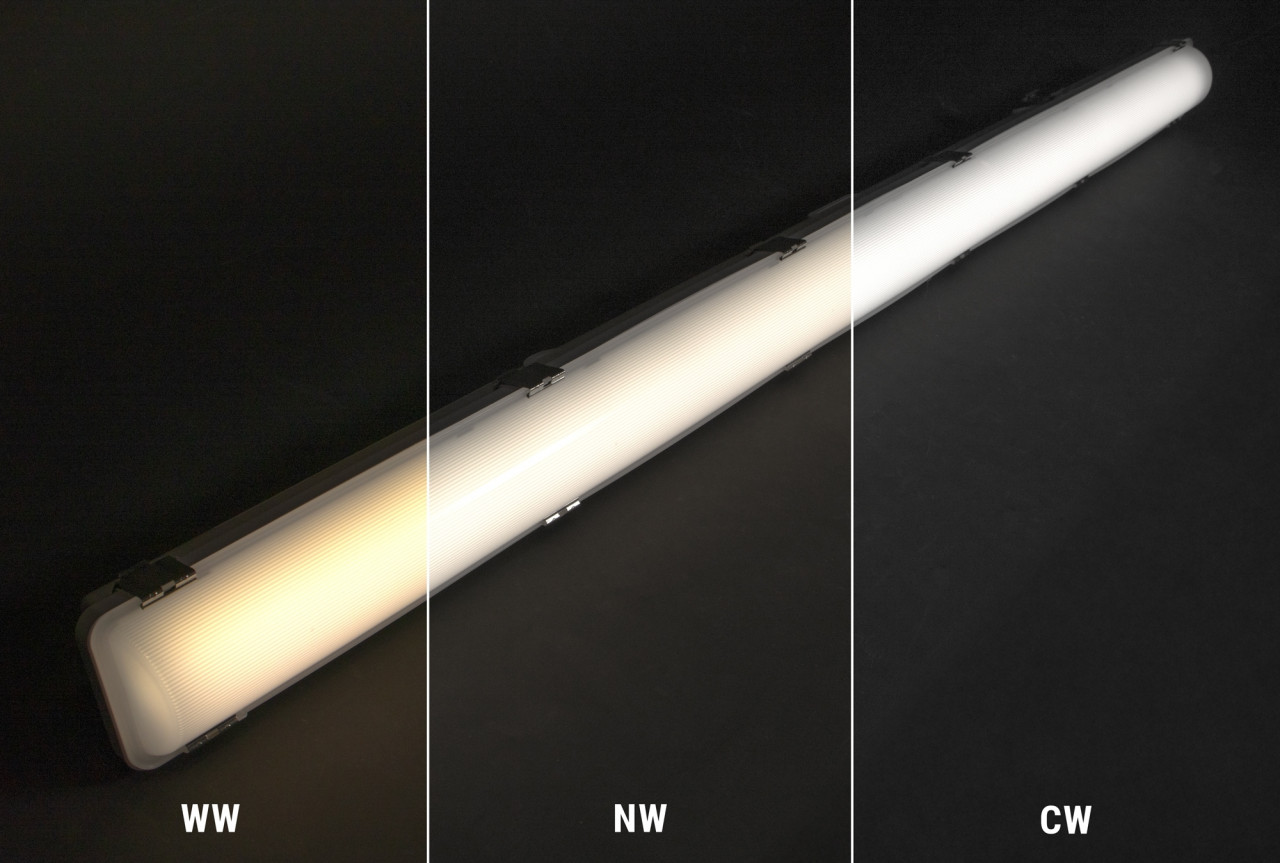

OneFitAll Edition with selectable CCT via Switsch on the LED-driver: 3000, 4000, 6500 Kelvin and power select: 20, 30, 40W = Multilumen: 2800, 3900, 4800 Lumen max. 140lm/W
Easy installtion accessory kits like motion sensor and emergency battery kit as plug and play solution. Any time easy toll free installation!

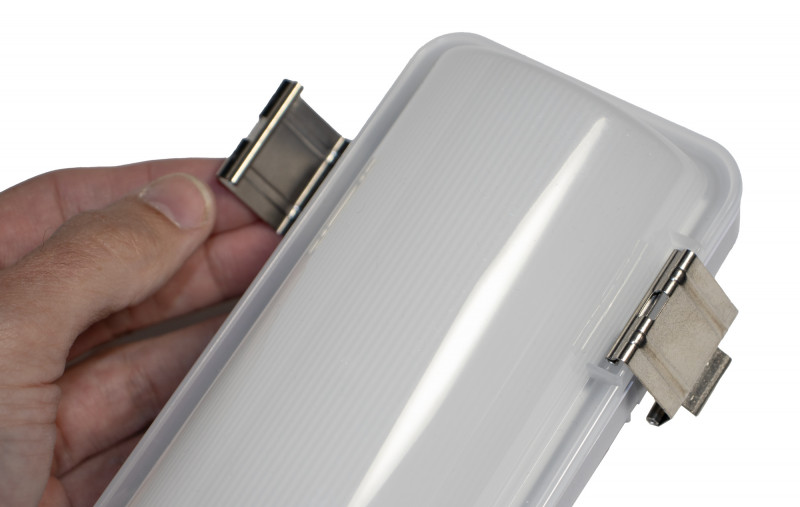

Stainless steel clips and installtion brackets with long sliding space, hence existing dowels can be used.
Advantages:
- wire through 4 x 2,5mm² with 2 x terminal block 4 pin, L1, L2 permanent phase for battery emergency, N, PE

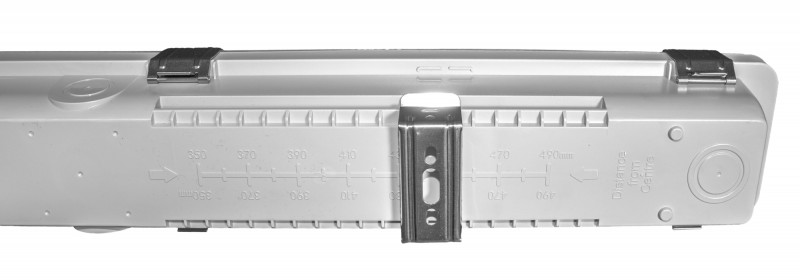

- flexible installation brackets and stainless steel clip lockers.

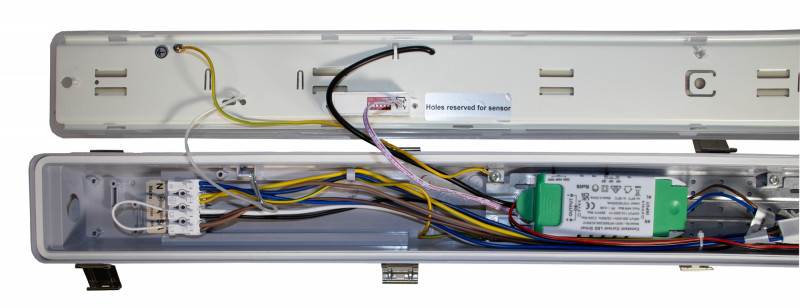

- easy to change light carrier board with electrical terminal with in/out/trough link function
- Low surface temperature below 80°C
- also available in Dali 2.0 dimming version
Applications:
warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop
Related links to "Ekova SELECT 120 20-40/830-865/4800lm"
Technical Details:
| Luminous Flux: | 4800 lm |
| Light Yield: | 120 lm/W |
| Light Temperature: | 3000, 4000, 6500 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 130 ° |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | PWM |
| LED-Chip Manufacturer: | MTC |
| LED-Chip: | SMD 2835 |
| Number of LED: | 240 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 220 - 240V, 50/60Hz, DC 115 - 260V |
| Power Consumption: | Power Select (20, 30, 40 W) |
| Contains Driver: | |
| Driver Manufacturer: | Litegear |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Loop-Through Cabling: | |
| Ambient Temperature (TA): | -25°C - 45°C |
| Storage Temperature: | -40°C - 70°C |
| Dimensions: | 1200x80x77 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 08 |
| Housing Color | grey |
| Housing Color (RAL Code): | similar 7004 |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | schlagfest Edelstahlclips |
| Cover: | frosted |
| Net Weight: | 1430 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1230x87x82 |
| Weight incl. Packaging: | 1.67 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1245x275x200 mm |
| Weight Master Package: | 11,02 kg |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557826417 |
| Power Loop: Durchgangsverdrahtung: 4 x 1,5mm² | |
| 2 x Klemmblock | |
| Edelstahlverschlüsse, Durchgangsverdrahtung | |
| Anzahl/Sicherungsautom: | |
| Bedingt zur Verwendung im Außenbereich geeignet | |
Available downloads:
- Download (20W_3000K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download (20W_4000K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download (20W_6500K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download (30W_3000K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download (30W_4000K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download (30W_6500K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download (40W_3000K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download (40W_4000K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download (40W_6500K) LG30805_Ekova SELECT 120 20-40_830-865_4800lm (.ldt)
- Download Manual Ekova (.pdf)
