Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP

Litegear
Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP Preview: Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP
Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP

Product Info (PDF)
Order number: LG30816
Available from 08/2025
Prices are only visible after login.

Availability: on request

Price after login

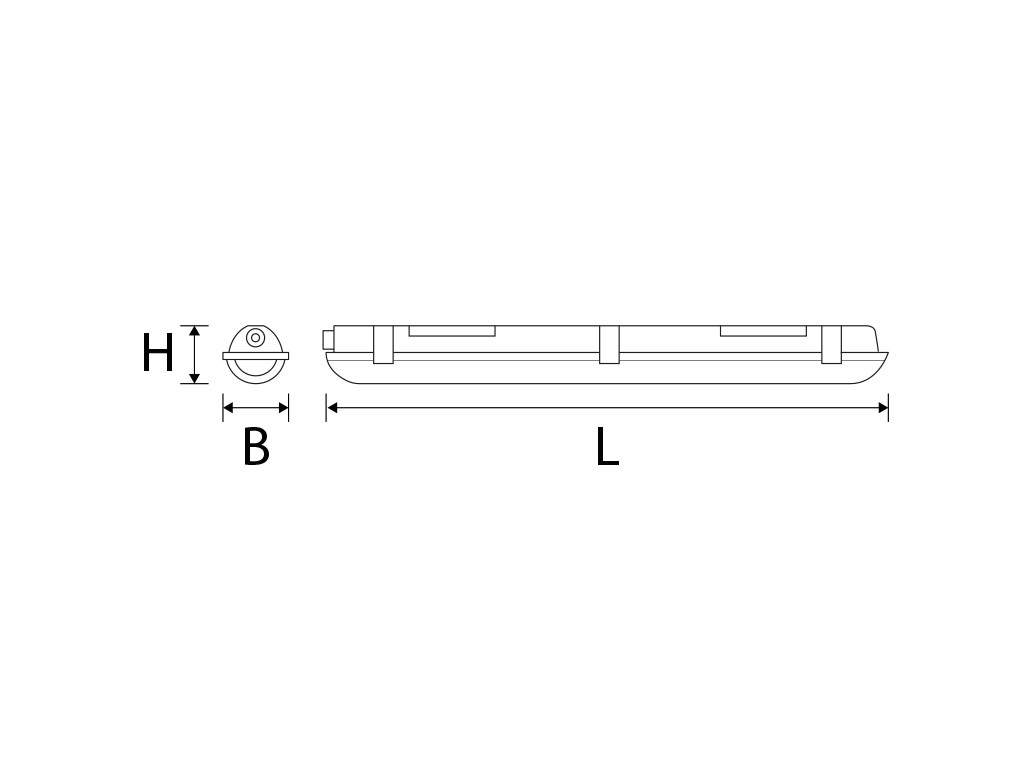

Dimensions

Dimensions
Short information
Short information
more
Menü schließen
  • Order number: : LG30816
  • Luminous Flux: 4500 lm
  • Power Draw: Power Select (26, 32, 40, 46 W)
  • Light Color: CCT Select (3000, 4000, 6500 K)
  • Input Current: AC 220 - 240V, 50/60Hz, DC 176 - 280V
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 65
  • Beam Angle: 90°
  • LED-Chip: MTC SMD 2835
  • Housing Color: grey
  • Dimensions: 1500x92x70 mm
  • Warranty: 3 years

Luminous Flux

4500
lm

Power Draw

50 W

Light Color

3000, 4000, 6500 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

90°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1500x92x70

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Description General data Download Accessories 3
Description
IP65 LED damp proof light OneFitAll with low glare rating UGR   Ekova UGR by... more
Close menu
Product information "Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP"
IP65 LED damp proof light OneFitAll with low glare rating UGR<19

Ekova UGR by Litegear® is the perfect dampproof IP65 luminaire for work benches with optimized galre rating. Due to an integrated louver the light distribution angle is limited and optimized for concentraded work on PCs, CNC machines and drive-/walkways Fast amortization with up to 65% electricity savings. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Retrova is very robust with IP65 ingress protection and IK08 impact class protection.

OneFitAll Edition with selectable CCT via Switsch on the LED-driver: 3000, 4000, 6500 Kelvin and power select: 26, 32, 40, 46W = Multilumen: 3120, 3580, 4000, 4750 Lumen max. 120lm/W
Easy installtion accessory kits like motion sensor and emergency battery kit as plug and play solution. Any time easy toll free installation!

Applications:
work place, PC station, production, transportation ways

Advantages:
  • wire through 3 x 1,5mm² with 2 x terminal 3 pin
  • flexible installation brackets and stainless steel clip lockers.
  • easy to change light carrier board with electrical terminal with in/out/trough link function
  • Low surface temperature below 80°C Mark: D
Related links to "Ekova UGR 150 26-46/830-865/4750lm max. UGR 19 low Glare, max. 120lm/W BAP"
General data
more
Zurück
Technical Details:

Luminous Flux: 4500 lm
Light Yield: 90 lm/W
Light Temperature: 3000, 4000, 6500 K
Light Color: CCT Select
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <6
Beam Angle: 90 °
Unified Glare Rating (UGR): 19
Light Emission: downward
LED-Chip Manufacturer: MTC
LED-Chip: SMD 2835
Number of LED: 240
Ignition Time: <0,5 s
Glow Wire Test 650°C/30s ja
Input Current: AC 220 - 240V, 50/60Hz, DC 176 - 280V
Power Consumption: Power Select (26, 32, 40, 46 W)
Contains Driver: ja
Driver Manufacturer: Eaglerise
Power Factor (PF): >0.9
Input Driver: cable with flying leads
CC/CV: CC
Output Current Adjustable: ja
Input Lamp: Terminal
Switching Cycles: >50.000
Electrical Protection Class: II
Loop-Through Cabling: ja
Ambient Temperature (TA): -25°C - 45°C
Storage Temperature: -40°C - 70°C
Dimensions: 1500x92x70 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 65
IK Code: 08
Housing Color grey
Housing Material: Polycarbonat
Special Feature of Housing: schlagfest Edelstahlclips
Cover: prismatisch + Raster
Net Weight: 1470 g
Type of Packaging: box
Dimensions of Packaging: 1515x100x83
Weight incl. Packaging: 1.77 kg
Content Master Package: 9
Dimensions of Master Package: 1230x315x270 mm
Weight Master Package: 16,8 kg
Product Line: ECO Line
Warranty 3 years
Operating Hours: >50.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405119090
Certifications CE,D
Barcode: 4250557826691
UGR<19 für Bildschirmarbeitsplätze geeignet
Edelstahlverschlüsse, Durchgangsverdrahtung
Anzahl/Sicherungsautom:
Bedingt zur Verwendung im Außenbereich geeignet
h h
Technical Data Sheet (PDF)
Download
more
Zurück
Available downloads:
Accessories 3
Preview
from 08/2025
Ekova SELECT Plug and Play Emergency Kit Ekova SELECT Plug and Play Emergency Kit
Preise nach Anmeldung.
Power Draw
1 W
Housing Color
white
Dimensions
235x65x42 mm
Preview
from 08/2025
Ekova SELECT Plug and Play Sensor 12V DC 30mA IP20 Ekova SELECT Plug and Play Sensor 12V DC 30mA...
Preise nach Anmeldung.
Housing Color
white
Dimensions
52x16x16 mm
Preview
from 08/2025
Ekova SELECT Sensor Remote Ekova SELECT Sensor Remote
Preise nach Anmeldung.
Housing Color
white
Dimensions
120x45x17,3 mm
