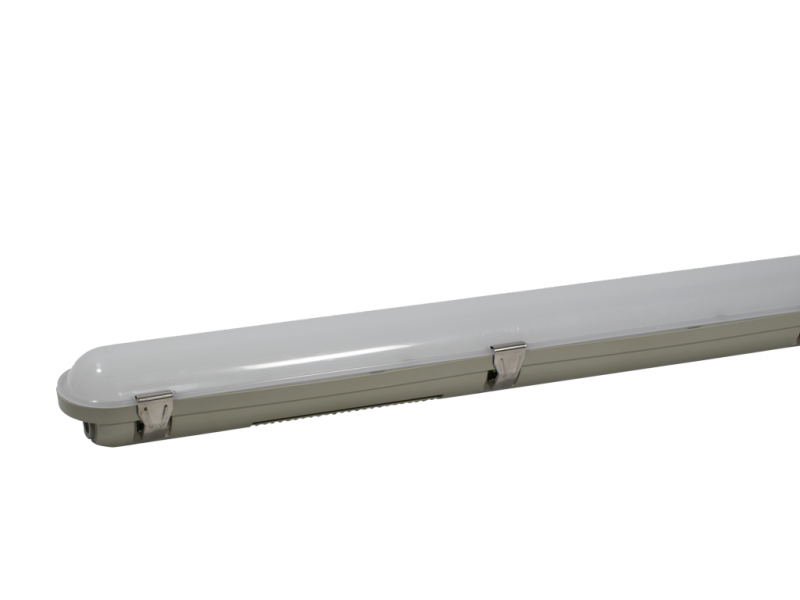

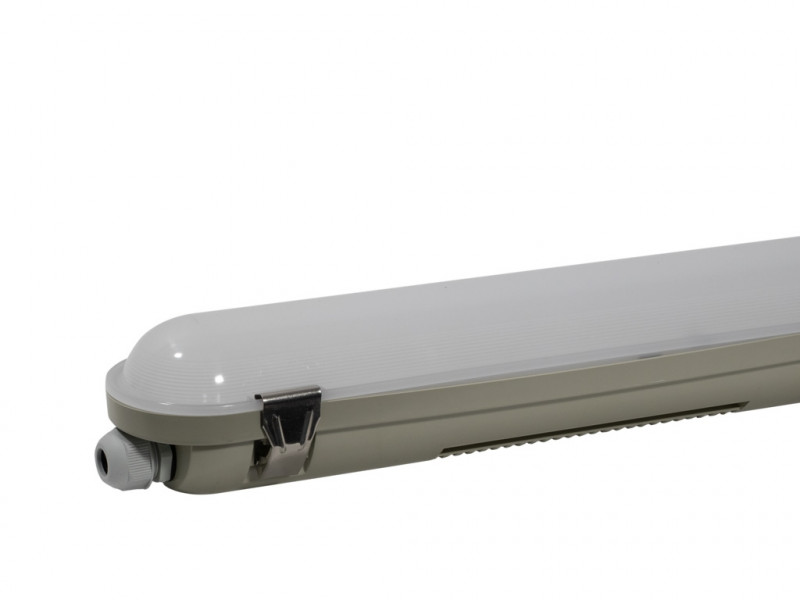

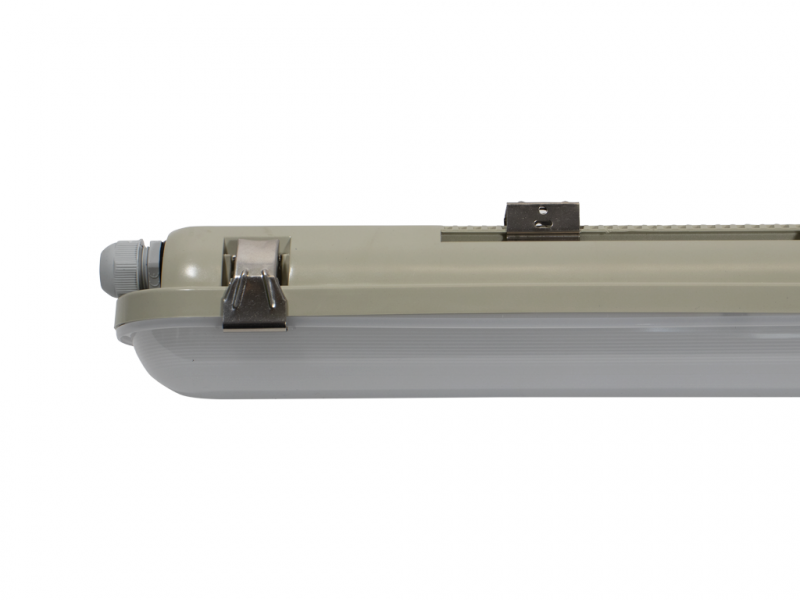

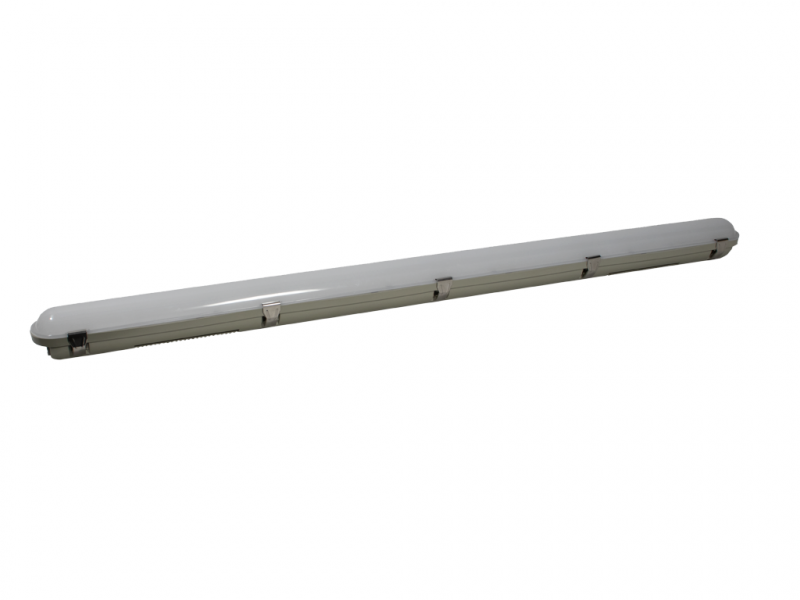

Ekova 150 50-840-7500lm
Order number: LG30781
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG30781
- Luminous Flux: 7500 lm
- Power Draw: 50 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 350mA, 50/60Hz, DC 180-264V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: SMD 2835
- Housing Color: grey
- Dimensions: 1510x90x72 mm
- Warranty: 3 years
IP65 LED triproof light Ekova by Litegear® is the perfect alternative to... more
Product information "Ekova 150 50-840-7500lm"
IP65 LED triproof light
Ekova by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Retrova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Fast amortization with up to 65% electricity savings. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Retrova is very robust with IP65 ingress protection and IK08 impact class protection.
Applications:
warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop
Advantages:
- wire through terminals 3 pin
- flexible installation brackets and stainless steel clip lockers.
- easy to change light carrier board with electrical terminal with in/out/trough link function
- Low surface temperature below 80°C Mark: D
Related links to "Ekova 150 50-840-7500lm"
Technical Details:
| Luminous Flux: | 7500 lm |
| LED Output: | 50 W |
| Light Yield: | 150 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220 - 240V, 350mA, 50/60Hz, DC 180-264V |
| Power Consumption: | 50 W |
| Contains Driver: | |

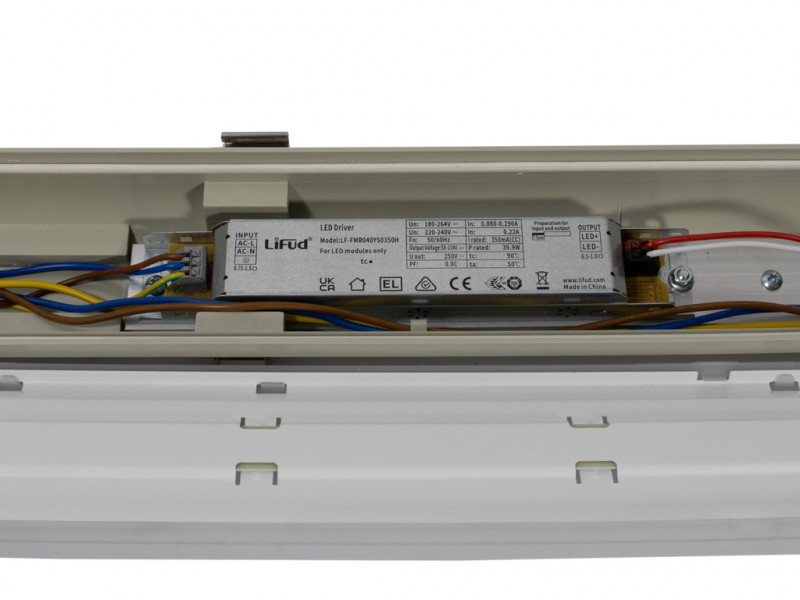

| Driver Manufacturer: | Lifud |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 137V, 350mA |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Loop-Through Cabling: | |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 1510x90x72 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 08 |
| Housing Color | grey |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | schlagfest Edelstahlclips |
| Cover: | prismatic |
| Net Weight: | 1684 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 1.87 kg |
| Content Master Package: | 9 |
| Dimensions of Master Package: | 1525x281x243 mm |
| Weight Master Package: | 18,2 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,D |
| Barcode: | 4250557823706 |
| Efficiency: 90%, THD 20%, Inrush: 30A&190µs-230Vac | |
| Geeignet für Zentral Batterie Notstrom DC | |
| Edelstahlverschlüsse, Durchgangsverdrahtung | |
| Anzahl/Sicherungsautom: B10: 20 , B16: 32, C16: 54 | |
| Nicht zur Verwendung im Außenbereich geeignet | |
