Order number: LG56352
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG56352
- Luminous Flux: 2480 lm
- Power Draw: 20 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 100 - 240V, 50/60Hz, DC 180-230V
- Color Rendering Index (CRI): ≥85 Ra
- IP Code: 65
- Beam Angle: 130°
- LED-Chip: Samsung SMD 5630
- Housing Color: silver
- Dimensions: 1200x32x43 mm
- Warranty: 3 years
(LxBxH) in mm
LED Batten - Instatube Advance Serie Litegears® Instatube Advance Series... more

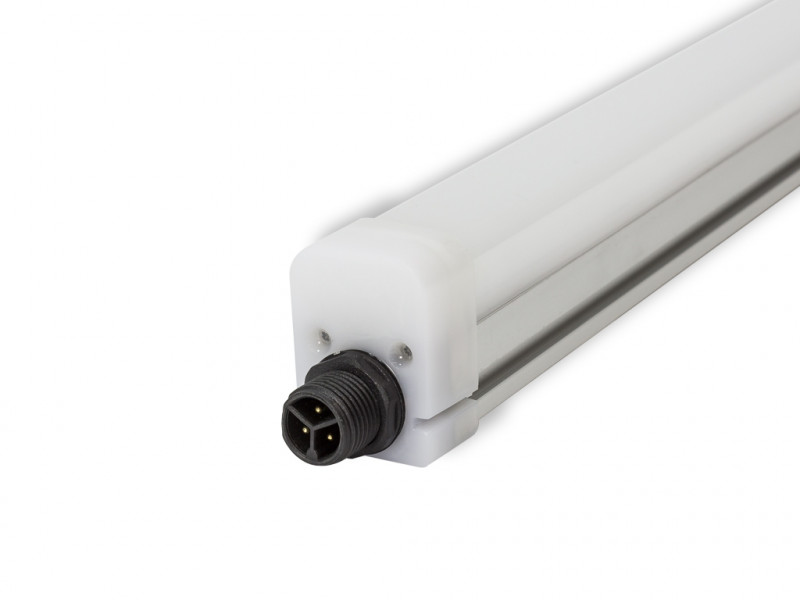

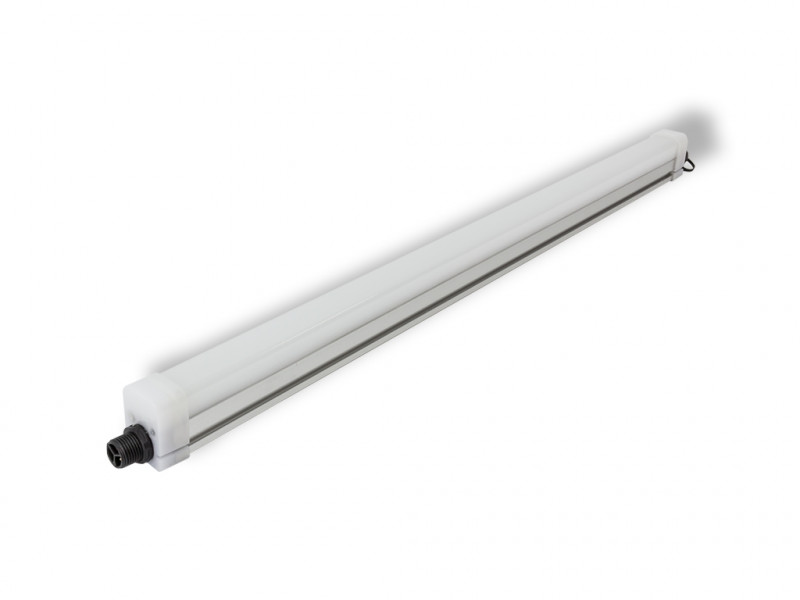

Product information "Instatube Advance 1200 20-840-2480LM"
LED Batten - Instatube Advance Serie

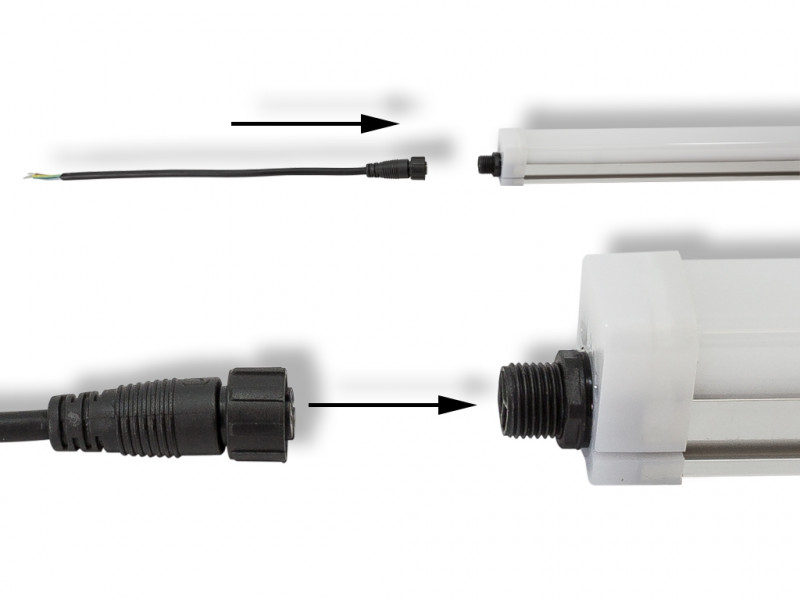

Litegears® Instatube Advance Series is a IP65 / IK08 waterproof LED luminaire. Modular desin, easy installation without tools and nice sleek design are the kley features of this product range. This linear LED batten can be used in many kind of applications such as cold store, green house, industry, warehouse, outside applications and moblie as worklight. The aluminum housing is protected against water and dust with an additional milky plastic cover and reaches IP65 / IK08 grade. Due to waterproof connectors and cables it has a very quick and easy installtion method. Just daisy chain directly or with premade waterproof connection cables. High Efficency with up to 130 Lumen/Watt. Including feed in cable.

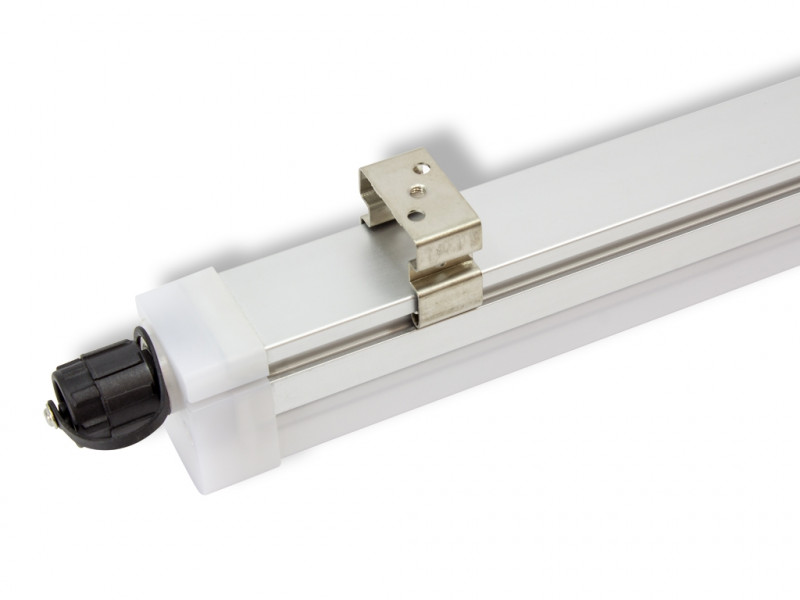

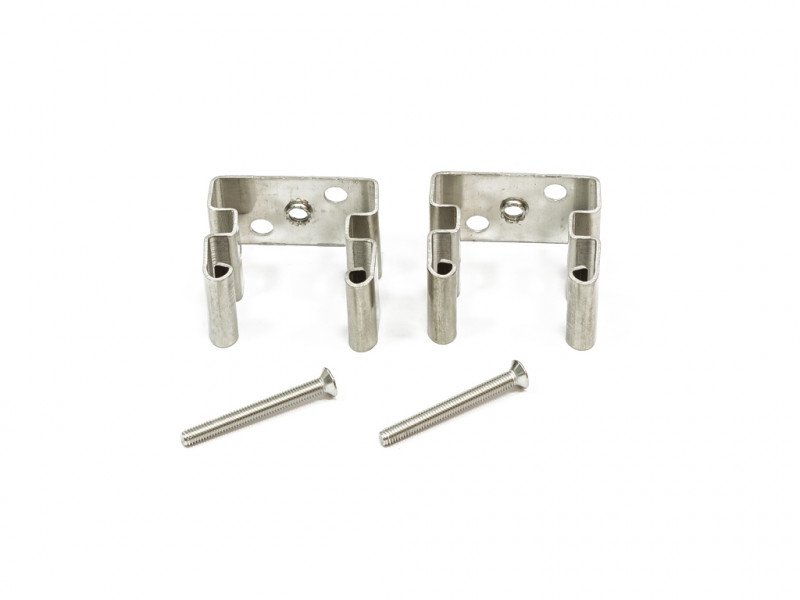

Litegear® Instatube Advance has a very good price to performance ratio compared to other waterproof fixtures. With the mounting clips it can be installed on ceilings and walls or with adhessive pads under shelfs. With optional steelwire set it can be used as a pendant light. Instatube from Litegear® can be offered in differnent lengths 600, 1200 and 1500 mm. One of the biggest advantages for LED lights is their lower power consumption and long lifespan up to 40.000 hours L70B50. The housing is very robust and strong and the LEDs are protected against heavy vibrations, dust and liquids.
- uniform light distribution
- no mercury
- CO² reduction
- simple and easy installation
- long life immediately
- ready - full brightness after switching
Related links to "Instatube Advance 1200 20-840-2480LM"
|Luminous Flux:||2480 lm|
|LED Output:||20 W|
|Light Yield:||124 lm/W|
|Light Temperature:||4000 K|
|Color Rendering Index:||≥85 Ra|
|Color Consistency (SDCM):||<5|
|Beam Angle:||130 °|
|Ignition Time:||<1 s|
|Input Current:||AC 100 - 240V, 50/60Hz, DC 180-230V|
|Power Consumption:||20 W|
|Power Factor (PF):||>0.9|
|Input Lamp:||cable with flying leads|
|Ambient Temperature (TA):||-20°C - 50°C|
|Storage Temperature:||-40°C - 60°C|
|Net Weight:||710 g|
|Type of Packaging:||box|
|Dimensions of Packaging:||1310x38x48|
|Weight incl. Packaging:||0.82 kg|
|Content Master Package:||15|
|Dimensions of Master Package:||1340x210x160 mm|
|Weight Master Package:||14,2 kg|
|Product Line:||Advance Line|
|Warranty||3 years, 20.000 h|
|Operating Hours:||>50.000 h L80/B20|
|Customs Tariff Number:||9405409990|
|Inkl. Montage Clips, Klebepads und Einspeiser|
