Order number: LG56363
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG56363
- Luminous Flux: 3200 lm
- Power Draw: 25 W
- Light Color: cold white (6000 K)
- Input Current: AC 100 - 240V, 50/60Hz, DC 180-230V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 130°
- LED-Chip: Samsung SMD 2835
- Housing Color: silver
- Dimensions: 1500x32x43 mm
- Warranty: 3 years
Luminous Flux
3200
lm
Power Draw
25 W
Light Color
6000 K
cold white
Color Rendering Index (CRI)
CRI
>80 Ra
IP Code
IP 65
Beam Angle
130°
ceiling, wall
mounting type
Light Direction
Dimensions
(LxBxH) in mm
1500x32x43
Warranty
3 years
The light source cannot be replaced
The driver cannot be replaced
LED Batten - Instatube Advance Serie Litegears® Instatube Advance Series... more

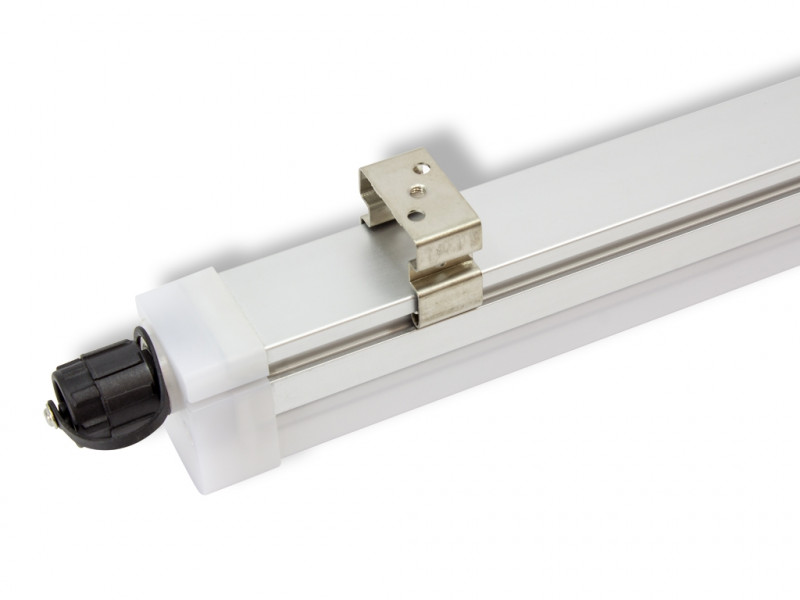

Product information "Instatube Advance 1500 25-860-3200LM"
LED Batten - Instatube Advance Serie
Litegears® Instatube Advance Series is a IP65 / IK08 waterproof LED luminaire. Modular desin, easy installation without tools and nice sleek design are the kley features of this product range. This linear LED batten can be used in many kind of applications such as cold store, green house, industry, warehouse, outside applications and moblie as worklight. The aluminum housing is protected against water and dust with an additional milky plastic cover and reaches IP65 / IK08 grade. Due to waterproof connectors and cables it has a very quick and easy installtion method. Just daisy chain directly or with premade waterproof connection cables. High Efficency with up to 130 Lumen/Watt. Including feed in cable.
Litegear® Instatube Advance has a very good price to performance ratio compared to other waterproof fixtures. With the mounting clips it can be installed on ceilings and walls or with adhessive pads under shelfs. With optional steelwire set it can be used as a pendant light. Instatube from Litegear® can be offered in differnent lengths 600, 1200 and 1500 mm. One of the biggest advantages for LED lights is their lower power consumption and long lifespan up to 40.000 hours L70B50. The housing is very robust and strong and the LEDs are protected against heavy vibrations, dust and liquids.
Advantages:
- uniform light distribution
- no mercury
- CO² reduction
- simple and easy installation
- long life immediately
- ready - full brightness after switching
Related links to "Instatube Advance 1500 25-860-3200LM"
Technical Details:
Luminous Flux: | 3200 lm |
LED Output: | 25 W |
Light Yield: | 128 lm/W |
Light Temperature: | 6000 K |
Light Color: | cold white |
Color Rendering Index: | ≥80 Ra |
Color Consistency (SDCM): | <6 |
Beam Angle: | 130 ° |
Light Emission: | downward |
LED-Chip Manufacturer: | Samsung |
LED-Chip: | SMD 2835 |
Ignition Time: | <1 s |
Input Current: | AC 100 - 240V, 50/60Hz, DC 180-230V |
Power Consumption: | 25 W |
Contains Driver: | |
Power Factor (PF): | >0.9 |
Input Lamp: | cable with flying leads |
Switching Cycles: | >50.000 |
Ambient Temperature (TA): | -20°C - 50°C |
Storage Temperature: | -40°C - 60°C |
Dimensions: | 1500x32x43 mm |
Mounting: | ceiling,wall |
Montageart: | surface mounted |
IP Class: | 65 |
IK Code: | 08 |
Housing Color | silver |
Housing Material: | aluminum |
Cover: | frosted |
Net Weight: | 920 g |
Type of Packaging: | box |
Dimensions of Packaging: | 1610x38x48 |
Weight incl. Packaging: | 1.03 kg |
Content Master Package: | 15 |
Dimensions of Master Package: | 1640x210x160 mm |
Weight Master Package: | 16,5 kg |
Product Line: | Advance Line |
Warranty | 3 years |
Operating Hours: | >40.000 h L70/B20 |
Disposal Obligation: | |
Customs Tariff Number: | 9405499090 |
Certifications | CE,D |
Barcode: | 4250557810393 |
Inkl. Montage Clips, Sch, Klebepads und Einspeiser |
Wetterfeste LED-Feuchtraumleuchte in schlankem Design mit einer schlagfesten PC-Abdeckung IK08... more
Wetterfeste LED-Feuchtraumleuchte in schlankem Design mit einer schlagfesten PC-Abdeckung IK08 für vielseitige Anwendung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 3200 lm
LED-Leistung: 25 W
Leuchten-Lichtausbeute: 128 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 130°
Lichtaustritt: direkt
Maße: 1500x32x43 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: silver
Gehäusematerial: Aluminium
Abdeckung: frost
Nettogewicht: 920 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B20): 40000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 3200 lm
LED-Leistung: 25 W
Leuchten-Lichtausbeute: 128 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 130°
Lichtaustritt: direkt
Maße: 1500x32x43 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: silver
Gehäusematerial: Aluminium
Abdeckung: frost
Nettogewicht: 920 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B20): 40000 h
