Preview: Instatube Advance 1500 25-840-3150LM

Product Info (PDF)

Order number: LG56362

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG56362
Luminous Flux: 3150 lm
Power Draw: 25 W
Light Color: neutralwhite (4000 K)
Input Current: AC 100 - 240V, 50/60Hz, DC 180-230V
Color Rendering Index (CRI): ≥85 Ra
IP Code: 65

Beam Angle: 130°
LED-Chip: Samsung SMD 2835
Housing Color: silver
Dimensions: 1500x32x43 mm
Warranty: 3 years

Luminous Flux

3150
lm

Power Draw

25 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>85 Ra

IP Code

IP 65

Beam Angle

130°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1500x32x43

Warranty

3 years

The light source cannot be replaced

The driver cannot be replaced

LED Batten - Instatube Advance Serie Litegears® Instatube Advance Series... more

Close menu

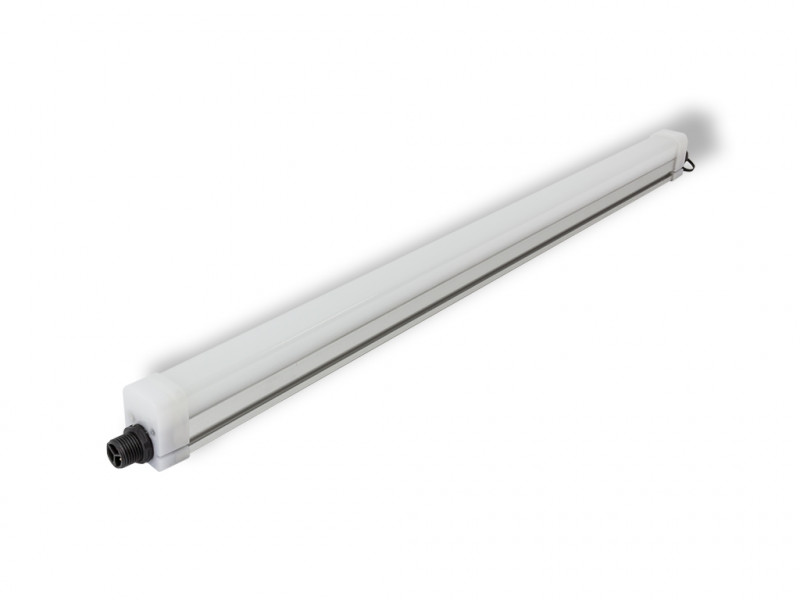

Product information "Instatube Advance 1500 25-840-3150LM"

LED Batten - Instatube Advance Serie

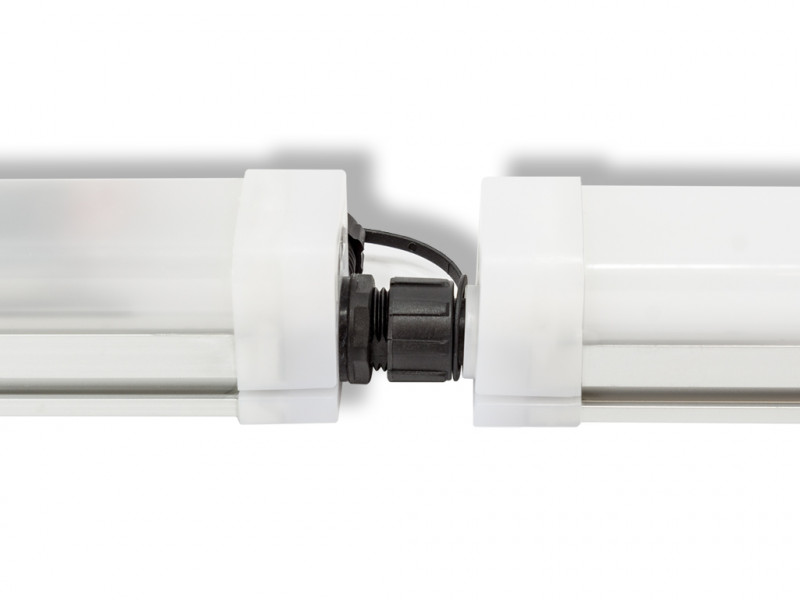

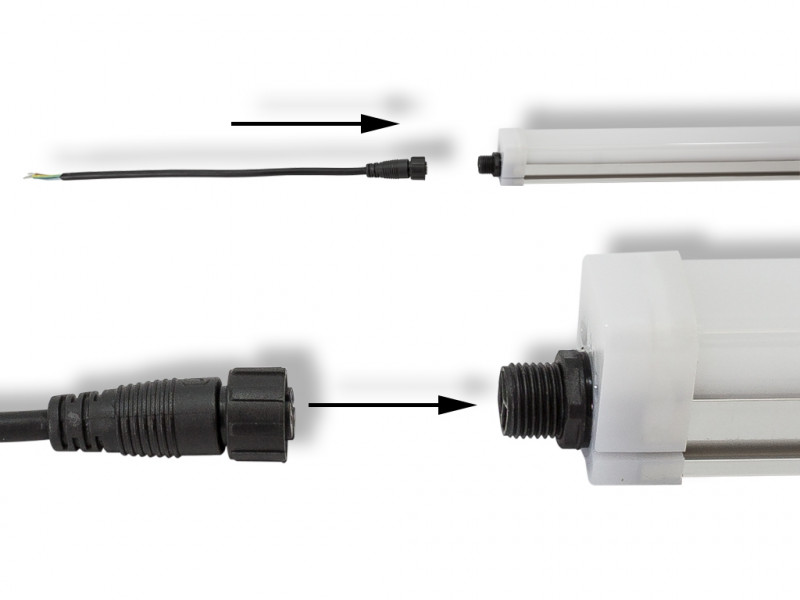

Litegears® Instatube Advance Series is a IP65 / IK08 waterproof LED luminaire. Modular desin, easy installation without tools and nice sleek design are the kley features of this product range. This linear LED batten can be used in many kind of applications such as cold store, green house, industry, warehouse, outside applications and moblie as worklight. The aluminum housing is protected against water and dust with an additional milky plastic cover and reaches IP65 / IK08 grade. Due to waterproof connectors and cables it has a very quick and easy installtion method. Just daisy chain directly or with premade waterproof connection cables. High Efficency with up to 130 Lumen/Watt. Including feed in cable.

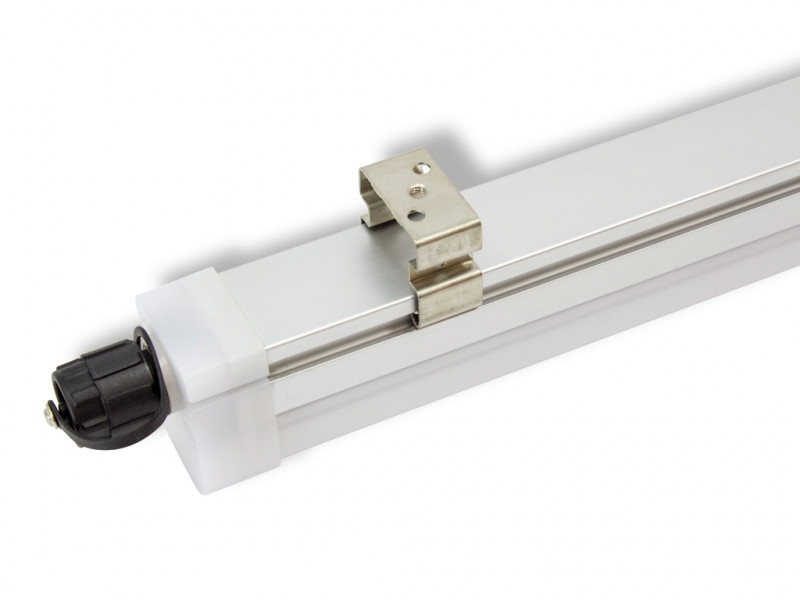

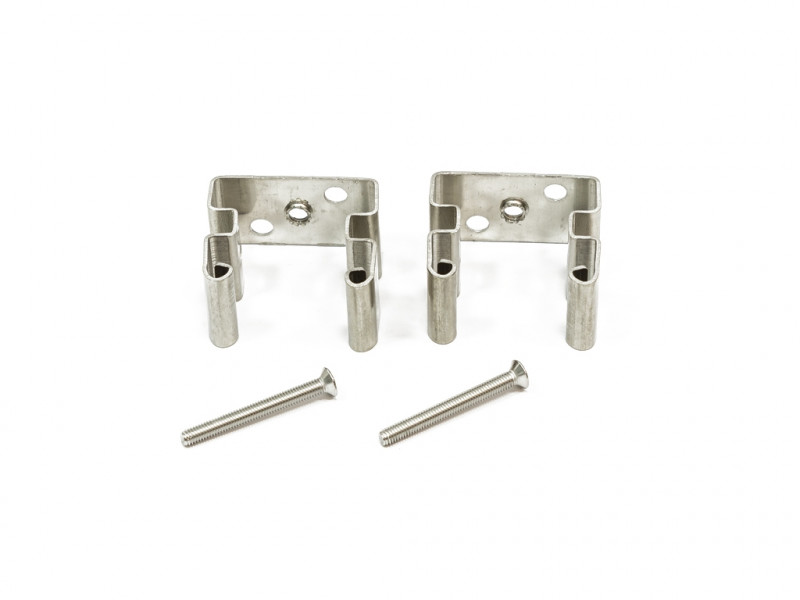

Litegear® Instatube Advance has a very good price to performance ratio compared to other waterproof fixtures. With the mounting clips it can be installed on ceilings and walls or with adhessive pads under shelfs. With optional steelwire set it can be used as a pendant light. Instatube from Litegear® can be offered in differnent lengths 600, 1200 and 1500 mm. One of the biggest advantages for LED lights is their lower power consumption and long lifespan up to 40.000 hours L70B50. The housing is very robust and strong and the LEDs are protected against heavy vibrations, dust and liquids.

Advantages:

uniform light distribution
no mercury
CO² reduction
simple and easy installation
long life immediately
ready - full brightness after switching

Related links to "Instatube Advance 1500 25-840-3150LM"

Zurück

Technical Details:

Luminous Flux:	3150 lm
LED Output:	24 W
Light Yield:	126 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥85 Ra
Color Consistency (SDCM):	<6
Beam Angle:	130 °
Light Emission:	downward
LED-Chip Manufacturer:	Samsung
LED-Chip:	SMD 2835
Ignition Time:	<1 s

Input Current:	AC 100 - 240V, 50/60Hz, DC 180-230V
Power Consumption:	25 W
Contains Driver:
Power Factor (PF):	>0.9
CC/CV:	CC
Input Lamp:	cable with flying leads
Switching Cycles:	>50.000
Ambient Temperature (TA):	-20°C - 50°C
Storage Temperature:	-40°C - 60°C

Dimensions:	1500x32x43 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	65
IK Code:	08
Housing Color	silver
Housing Material:	aluminum
Cover:	frosted
Net Weight:	920 g

Type of Packaging:	box
Dimensions of Packaging:	1610x38x48
Weight incl. Packaging:	1.03 kg
Content Master Package:	15
Dimensions of Master Package:	1640x210x160 mm
Weight Master Package:	16,5 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405409990
Certifications	CE
Barcode:	4250557810621
Inkl. Montage Clips, Sch, Klebepads und Einspeiser

Technical Data Sheet (PDF)

Wetterfeste LED-Feuchtraumleuchte in schlankem Design mit einer schlagfesten PC-Abdeckung IK08... more

Zurück

Wetterfeste LED-Feuchtraumleuchte in schlankem Design mit einer schlagfesten PC-Abdeckung IK08 für vielseitige Anwendung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 3150 lm
LED-Leistung: 25 W
Leuchten-Lichtausbeute: 126 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >85
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 130°
Lichtaustritt: direkt
Maße: 1500x32x43 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: silver
Gehäusematerial: Aluminium
Abdeckung: frost
Nettogewicht: 920 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h

Zurück

Available downloads:

Download LG56362_Instatube Advance 1500 25-840-3150LM (.ldt)
