Instatube Advance 1200 20-860-2500LM

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • LG56353
  • Luminous Flux: 2500 lm
  • Power Draw: 20 W
  • Light Color: cold white (6000 K)
  • Input Current: AC 100 - 240V, 50/60Hz, DC 180-230V
  • Color Rendering Index (CRI): ≥85 Ra
  • IP Code: 65
  • Beam Angle: 130°
  • LED-Chip: Samsung SMD 5630
  • Housing Color: silver

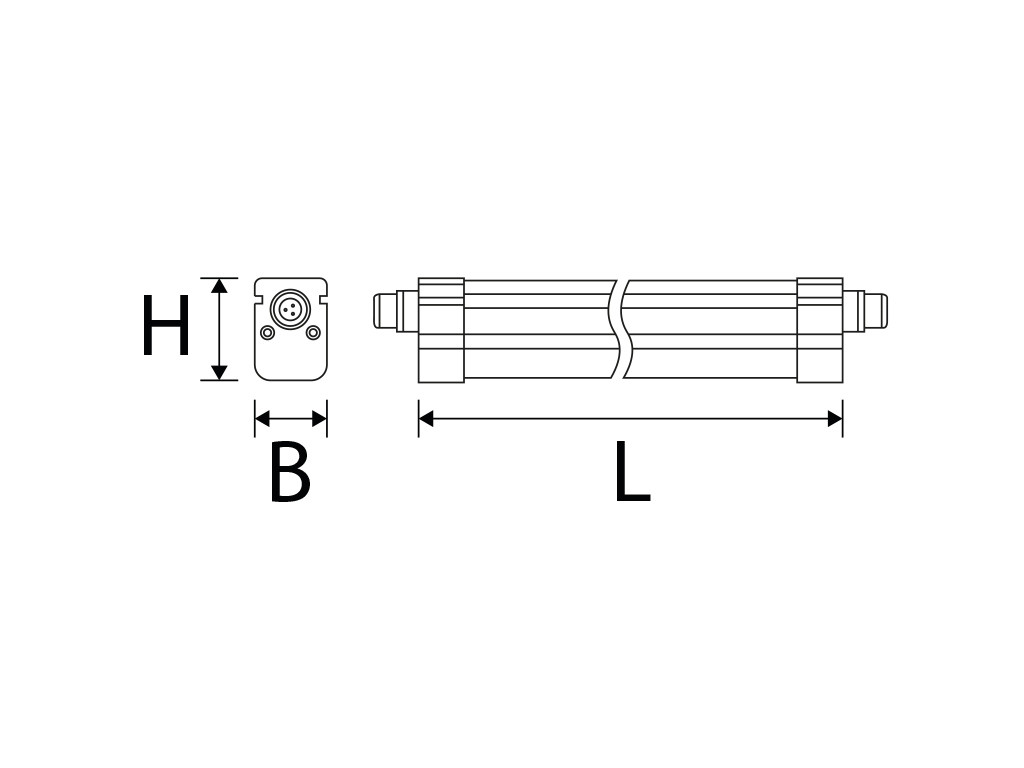

  • Dimensions: 1200x32x43 mm
  • Warranty: 3 years

Luminous Flux


Power Draw

20 W

Light Color

6000 K
cold white

Color Rendering Index (CRI)

>85 Ra

IP Code

IP 65

Beam Angle


ceiling, wall

mounting type

Light Direction


(LxBxH) in mm


3 years

The light source cannot be replaced

The driver cannot be replaced

LED Batten - Instatube Advance Serie   Litegears® Instatube Advance Series... more
Product information "Instatube Advance 1200 20-860-2500LM"
LED Batten - Instatube Advance Serie
Litegears® Instatube Advance Series is a IP65 / IK08 waterproof LED luminaire. Modular desin, easy installation without tools and nice sleek design are the kley features of this product range. This linear LED batten can be used in many kind of applications such as cold store, green house, industry, warehouse, outside applications and moblie as worklight. The aluminum housing is protected against water and dust with an additional milky plastic cover and reaches IP65 / IK08 grade. Due to waterproof connectors and cables it has a very quick and easy installtion method. Just daisy chain directly or with premade waterproof connection cables. High Efficency with up to 130 Lumen/Watt. Including feed in cable.
Litegear® Instatube Advance has a very good price to performance ratio compared to other waterproof fixtures. With the mounting clips it can be installed on ceilings and walls or with adhessive pads under shelfs. With optional steelwire set it can be used as a pendant light. Instatube from Litegear® can be offered in differnent lengths 600, 1200 and 1500 mm. One of the biggest advantages for LED lights is their lower power consumption and long lifespan up to 40.000 hours L70B50. The housing is very robust and strong and the LEDs are protected against heavy vibrations, dust and liquids.
  • uniform light distribution
  • no mercury
  • CO² reduction
  • simple and easy installation
  • long life immediately
  • ready - full brightness after switching
Related links to "Instatube Advance 1200 20-860-2500LM"
Technical Details:
Luminous Flux: 2500 lm
LED Output: 19 W
Light Yield: 125 lm/W
Light Temperature: 6000 K
Light Color: cold white
Color Rendering Index: ≥85 Ra
Color Consistency (SDCM): <6
Beam Angle: 130 °
Light Emission: downward
LED-Chip Manufacturer: Samsung
LED-Chip: SMD 5630
Ignition Time: <1 s
Input Current: AC 100 - 240V, 50/60Hz, DC 180-230V
Power Consumption: 20 W
Contains Driver: ja
Power Factor (PF): >0.9
Input Lamp: cable with flying leads
Switching Cycles: >50.000
Ambient Temperature (TA): -20°C - 50°C
Storage Temperature: -40°C - 60°C
Dimensions: 1200x32x43 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 65
IK Code: 08
Housing Color silver
Housing Material: aluminum
Cover: frosted
Net Weight: 710 g
Type of Packaging: box
Dimensions of Packaging: 1310x38x48
Weight incl. Packaging: 0.82 kg
Content Master Package: 15
Dimensions of Master Package: 1340x210x160 mm
Weight Master Package: 15 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >40.000 h L70/B20
Disposal Obligation: ja
Customs Tariff Number: 9405499090
Certifications CE,D
Barcode: 4250557810379
Inkl. Montage Clips, Sch, Klebepads und Einspeiser
Wetterfeste LED-Feuchtraumleuchte in schlankem Design mit einer schlagfesten PC-Abdeckung IK08... more
Wetterfeste LED-Feuchtraumleuchte in schlankem Design mit einer schlagfesten PC-Abdeckung IK08 für vielseitige Anwendung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 2500 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 125 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >85
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 130°
Lichtaustritt: direkt
Maße: 1200x32x43 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: silver
Gehäusematerial: Aluminium
Abdeckung: frost
Nettogewicht: 710 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B20): 40000 h
