RETROVA EXTREME 1570 55-840-865-9680LM DALI 2 - 183lm/W max.
Order number: LG30806
Available soon
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG30806
- Luminous Flux: 9680 lm
- Power Draw: Power Select (20, 25, 30, 35, 40, 45,54 W)
- Light Color: CCT Select (4000, 5000, 6500 K)
- Input Current: AC 220-240V, 320mA, 50/60Hz, DC 176-280V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 120°
- LED-Chip: Jufei, Lumileds, everligh SMD 2835 0,5W
- Housing Color: hellgrey
- Dimensions: 1570x85x80 mm
- Warranty: 5 years
IP66 LED triproof light with max. 183lm/W system efficiency with Dali dimming ... more
Product information "RETROVA EXTREME 1570 55-840-865-9680LM DALI 2 - 183lm/W max."
IP66 LED triproof light with max. 183lm/W system efficiency with Dali dimming

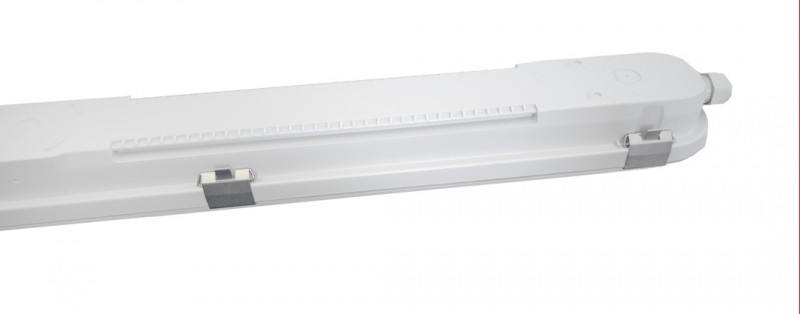

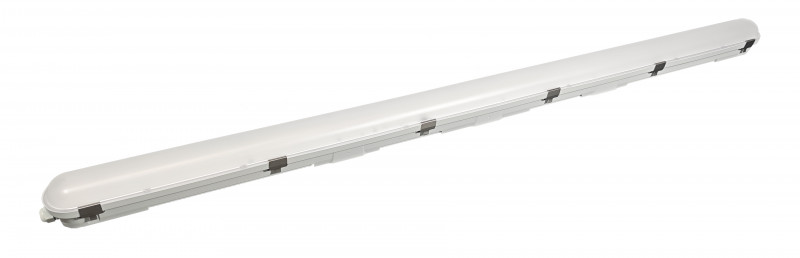

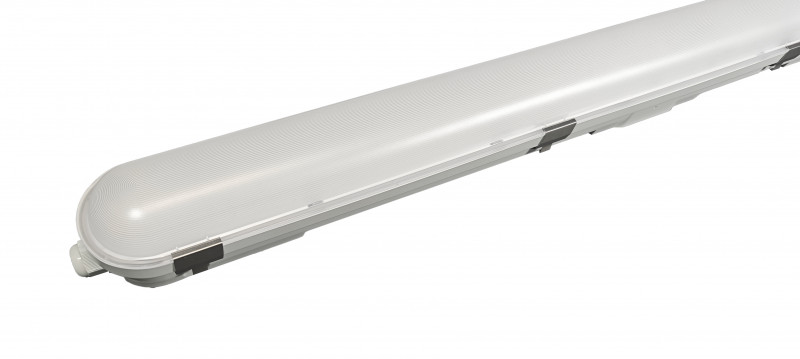

Retrova Extreme by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Retrova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Retrova is very robust with IP66 ingress protection and IK08 impact class protection.
Applications:
warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop, food processing
Advantages:
- CCT select: 4000, 5000, 6500 Kelvin.
- maximum 183lm/W @ 5000K other CCT: 170-175lm/W
- Ingress protection: IK08 and HACCP certification. It can be used in food processing processes.
- ENEC certification for the whole fixture.

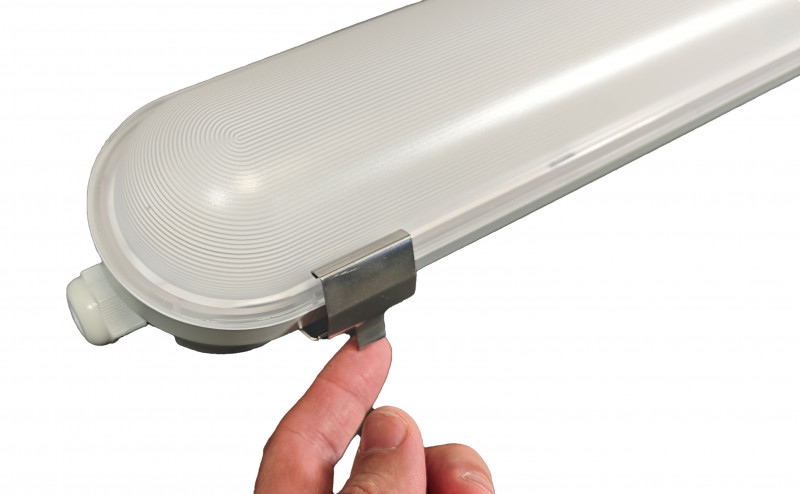

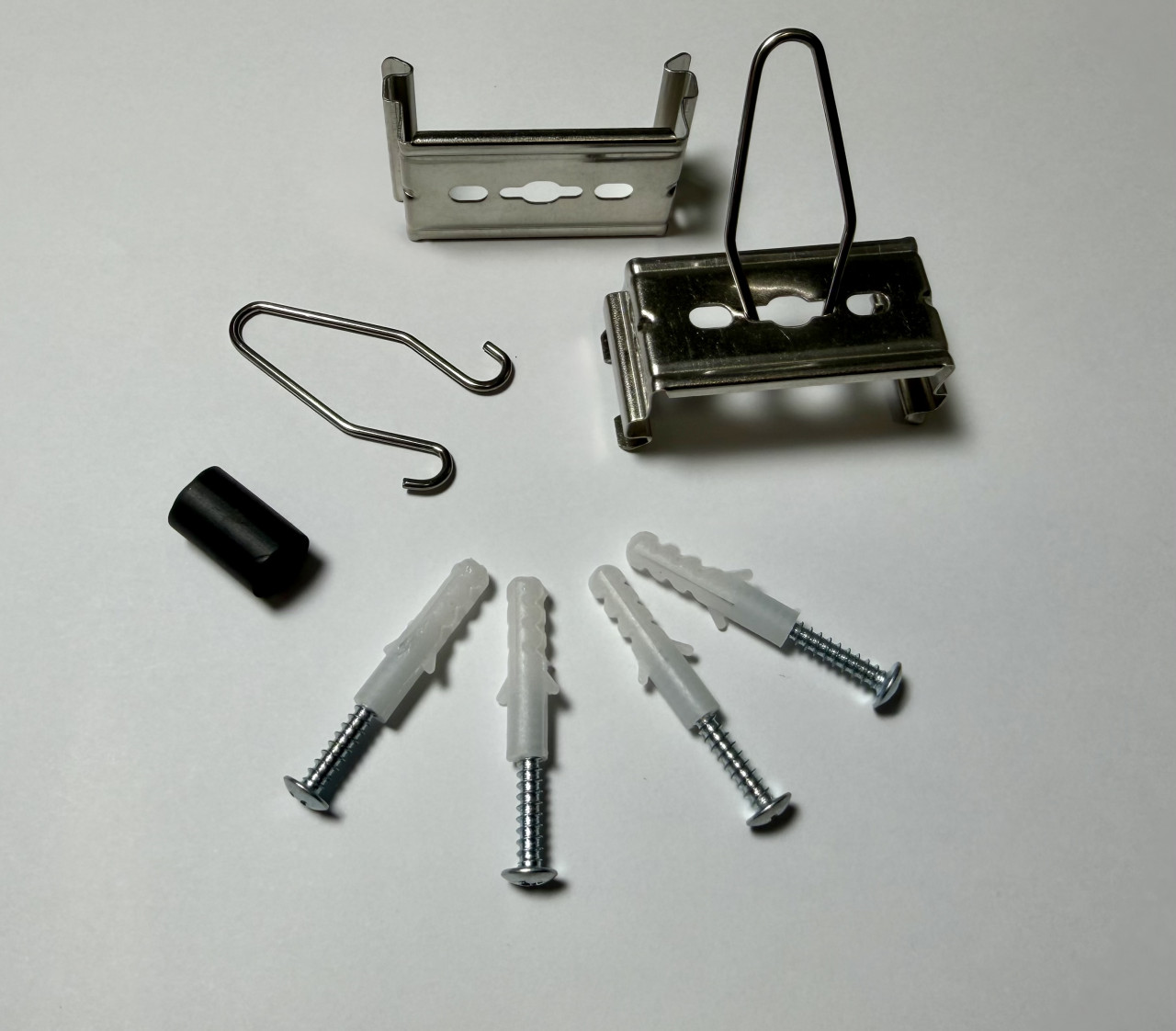

- flexible installation brackets and stainless steel clip lockers.

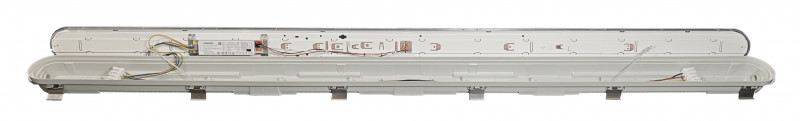

- Exchangeable LED tray environmental friendly, Driver can be exchanged by qualified installer.
- Many precut cable gand positions from both sides and backside.
- Low surface temperature below 80°C
- Power link: trough wireing by 5 x 1,5mm² wire with termin al blocks on both ends
Advantages:

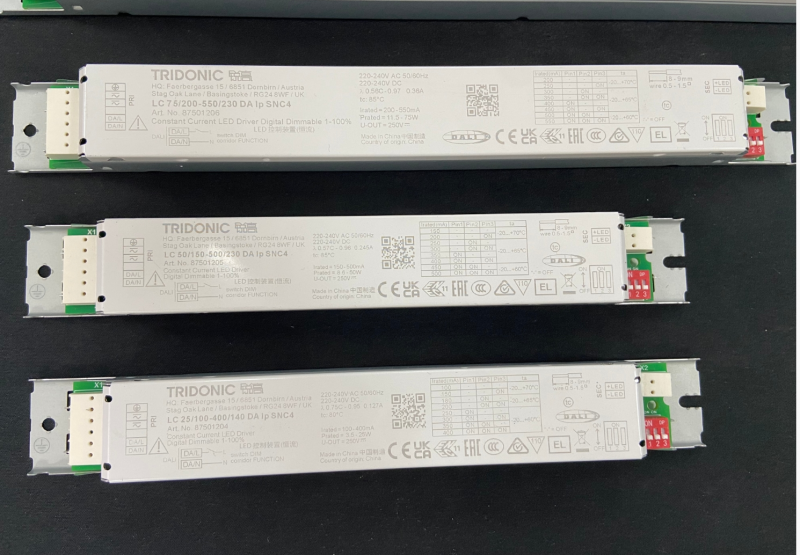

Long life time due to Tridonic Dali 2.0 Driver with select able output current 200-550mA, 20-55W
Related links to "RETROVA EXTREME 1570 55-840-865-9680LM DALI 2 - 183lm/W max."
Technical Details:
| Luminous Flux: | 9680 lm |
| Light Yield: | 183 lm/W |
| Light Temperature: | 4000, 5000, 6500 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 30 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | Jufei, Lumileds, everligh |
| LED-Chip: | SMD 2835 0,5W |
| Number of LED: | 314 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 220-240V, 320mA, 50/60Hz, DC 176-280V |
| Power Consumption: | Power Select (20, 25, 30, 35, 40, 45,54 W) |
| Contains Driver: | |
| Driver Manufacturer: | Tridonic LCA75/200-550/23 |
| Power Factor (PF): | >0.97 |
| Input Driver: | terminal |
| Output of Driver: | DC 300V, 200-550mA |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -25°C - 45°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 1570x85x80 mm |
| Mounting: | Decke,Wand,Deckenabhängung |
| Montageart: | surface mounted |
| IP Class: | 66 |
| IK Code: | 08 |
| Housing Color | hellgrey |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | Edelstahl Clips UV-stabil |
| Cover: | prismatic |
| Net Weight: | 1780 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1600x90x80 |
| Weight incl. Packaging: | 1.98 kg |
| Content Master Package: | 8 |
| Dimensions of Master Package: | 1625x360x195 mm |
| Weight Master Package: | 17,73 kg |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >70.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,ENEC,SELV,HACCP |
| Barcode: | 4250557826981 |
| UV stable housing, Efficiency: 93% | |
| Anzahl Leuchten:10B: 13,16B: 20, 10C: 19, 16C: 30 | |
| Max. 183lm/W @ 5000K sonst 170-173lm/W | |

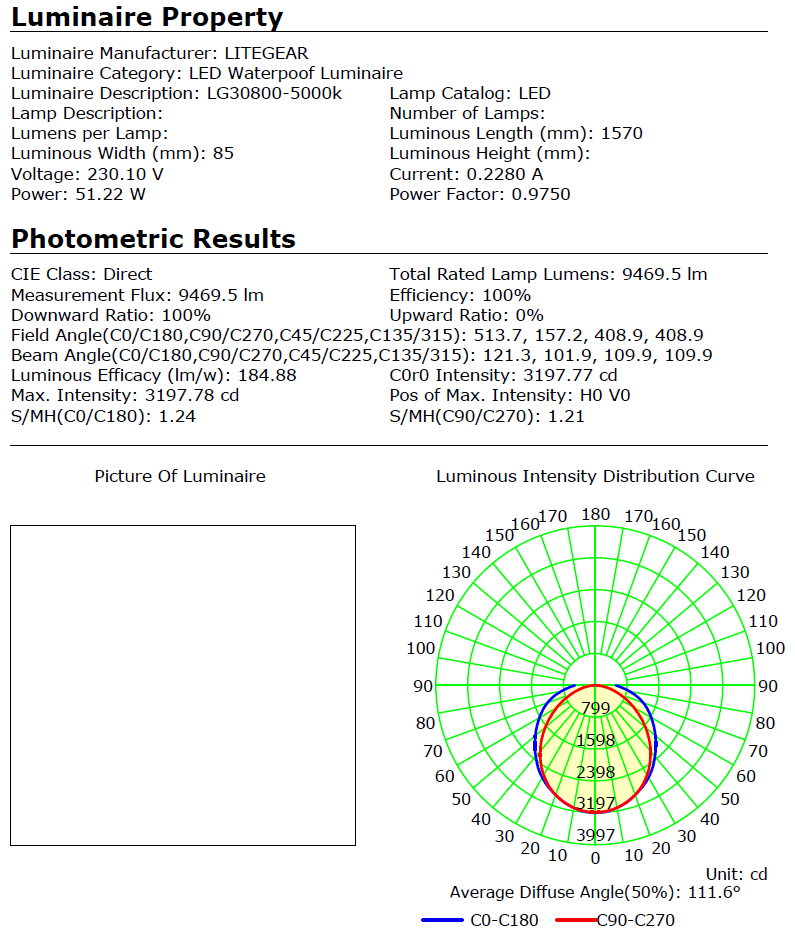

Available downloads:
