Product Info (PDF)

Order number: LG14490B

Prices are only visible after login.

Availability: on request

Modular LED track spotlight The Varia-Style tracklight from the German... more

Close menu

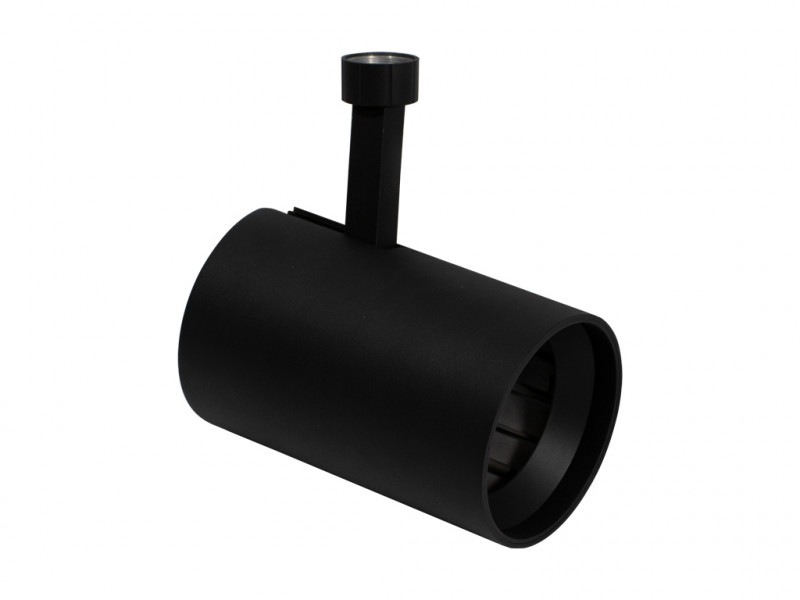

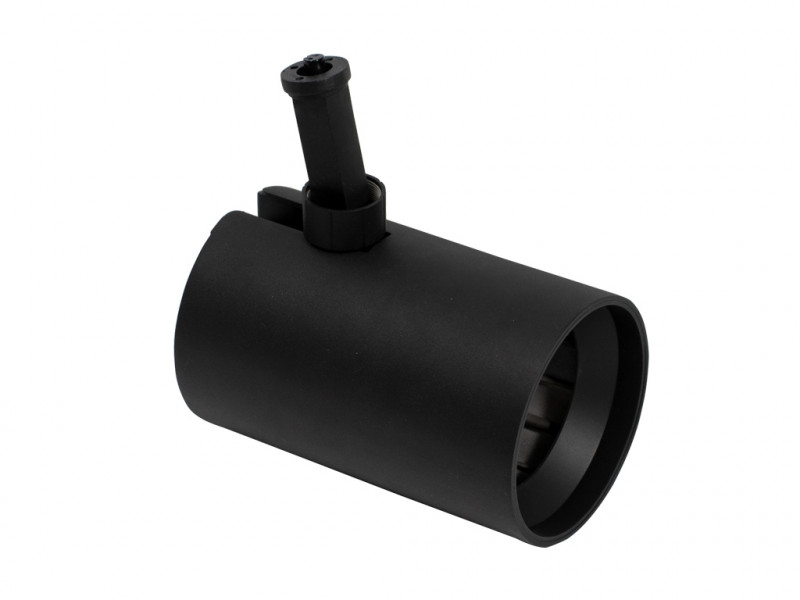

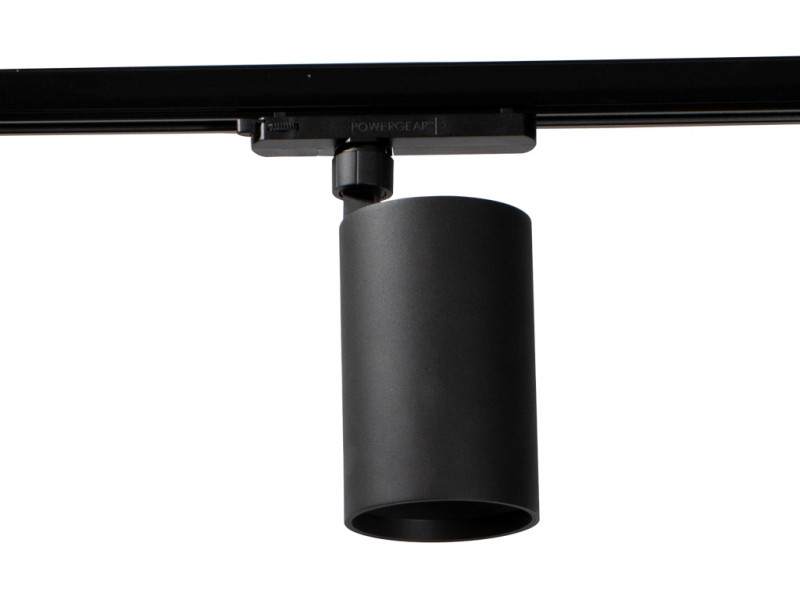

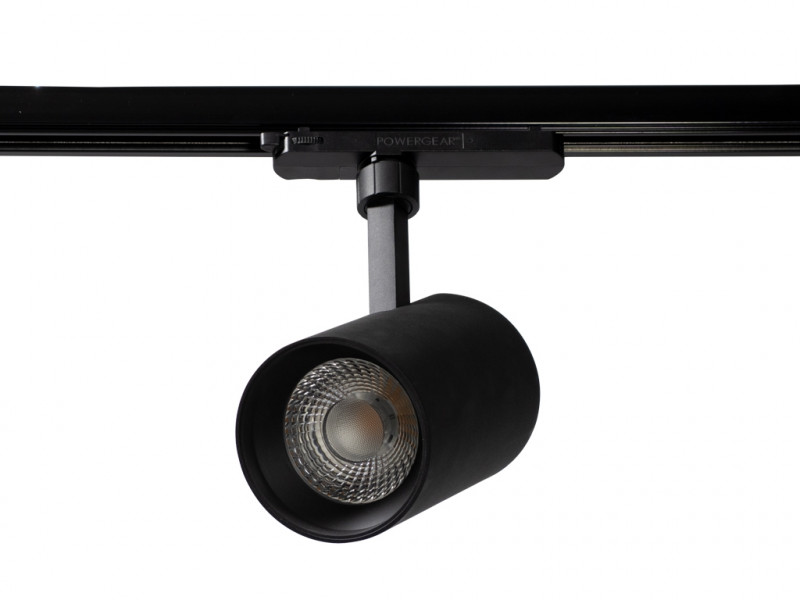

Product information "Varia-Style Gehäuse 40W-BK"

Modular LED track spotlight

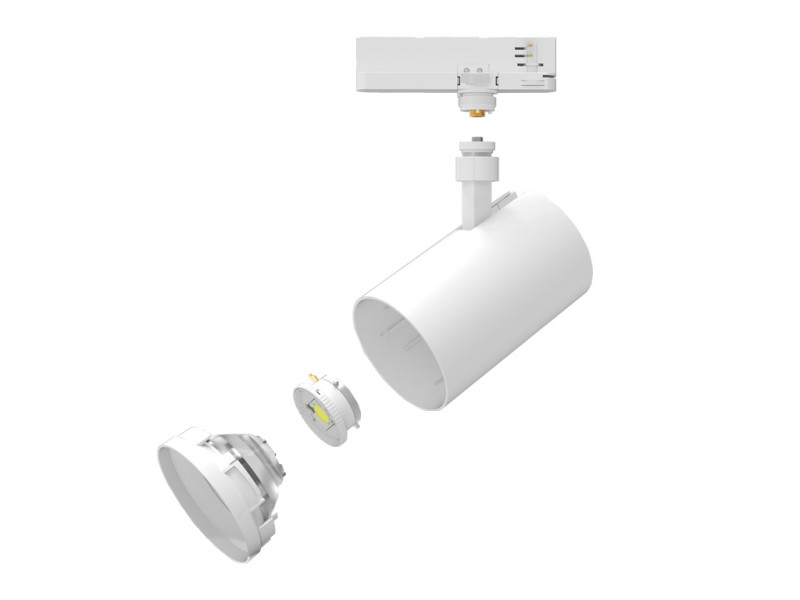

The Varia-Style tracklight from the German manufacturer Litegear® is probably the most innovative LED surface-mounted spotlight in the world. The modular, service-friendly design allows you to exchange the lens, the LED module and the LED driver within seconds without tools. So you can change the LED chip color with a different light color afterwards or exchange the lens against one with a more optimum beam angle. After a long period of use, the internal ballasts often fail, even the user himself can replace the ballast by simply plugging them on to the tracklight housing. The power adjustment of the power supplies by means of small DIP switches is also brilliant. The power of the LED track lights can be adjusted in 4 stages: 32W, 35W, 37W, 40W! Hereby one achieves either maximum performance or achieves maximum power savings. Customers have the choice between 2 housing colors, 2 diffrent external drivers with ranges from 27W to 32W or 32W to 40W by power-select switches. Even the driver can be exchanges tool free within seconds.

Varia is extremly variable!

Varia is assembled according to her personal configuration in Germany.

Changeable and adjustable LED Driver: 28-42W

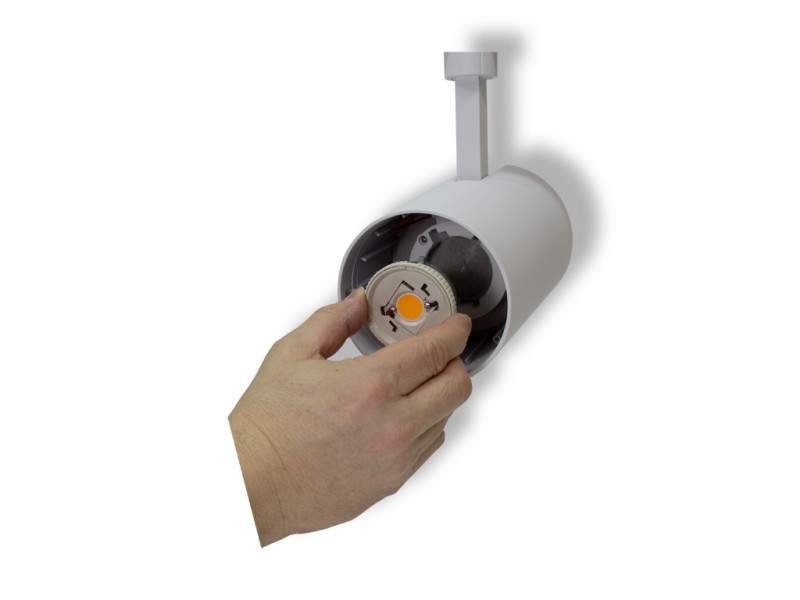

Exchangeable LED COB module with the best quality of light and high efficiency: CRI> 80 or CRI> 90 with improved color rendering
Selectable light colors: 2700K, 3000K, 3500K, 4000K, 5700K, Gold for baked goods, Fresh Meat and Meat Plus for meat and sausage products, Exciting Color for fashion
long life: up to 50,000 hours L70

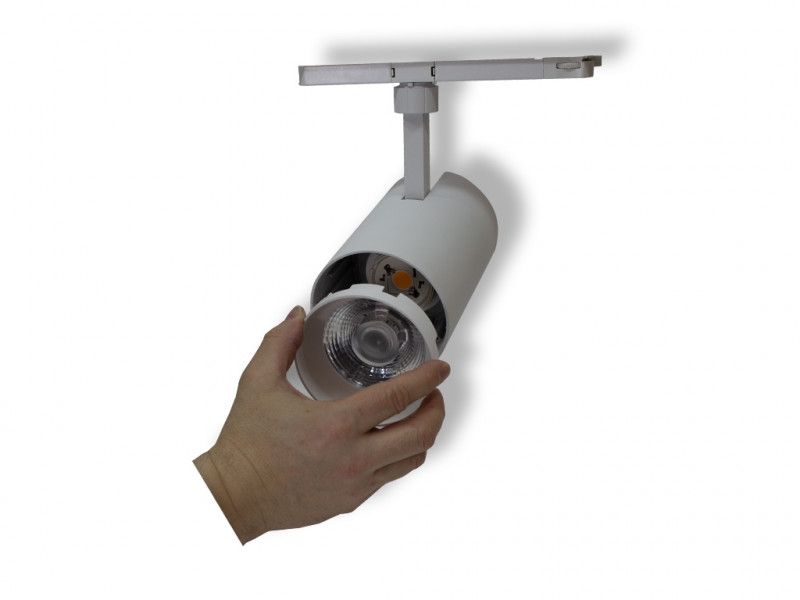

reflector exchangeable without tools: 15 °, 25 °, 36 °
3-phase power adapter, compatible with all standard track rails
3 Housing color available: white, gray, black or numerous combinations thereof
passive cooling, aluminum heat sink
modular design

Related links to "Varia-Style Gehäuse 40W-BK"

Zurück

Technical Details:

Swappable Reflector:

CC/CV:	CC
Input Lamp:	Power rail
Ambient Temperature (TA):	-10°C - 40°C
Storage Temperature:	-20°C - 50°C

Dimensions:	210x110x195 mm
Mounting:	Decke
Montageart:	surface mounted
Pivot Range pan:	350 °
Pivot Range tilt:	90 °
IP Class:	20
Housing Color	black
Housing Material:	aluminum
Coating:	powder-coated
Special Feature of Housing:	for 3-Phase Track Adapter
Net Weight:	1262 g

Type of Packaging:	box
Weight incl. Packaging:	1.262 kg

Product Line:	Premio Line
Warranty	5 years
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80,D
Barcode:	4250557820231
Gehäuse zur Aufnahme von LED-Modul, Linse, Treiber
housing to carry LED module, lens and driver

Technical Data Sheet (PDF)

Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit... more

Zurück

Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit Leistungsanpassung
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 40°C
Maße: 210x110x195 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 1262 g
Garantie: 5 Jahre

Zurück

Available downloads:
