Xona Maxima Basic TRUNKING RAIL 1U-150

Prices are only visible after login.

Availability: on request

  • LG31323
  • Housing Color: white
  • Dimensions: 1499x69x41 mm


(LxBxH) in mm

Mounting rail for Maxima Basic LED module or luminaire support module   The... more
Product information "Xona Maxima Basic TRUNKING RAIL 1U-150"
Mounting rail for Maxima Basic LED module or luminaire support module

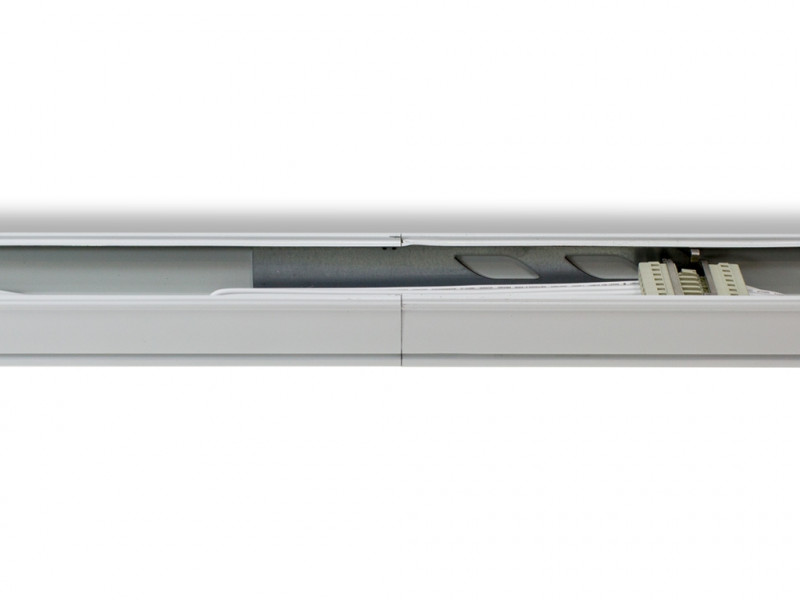

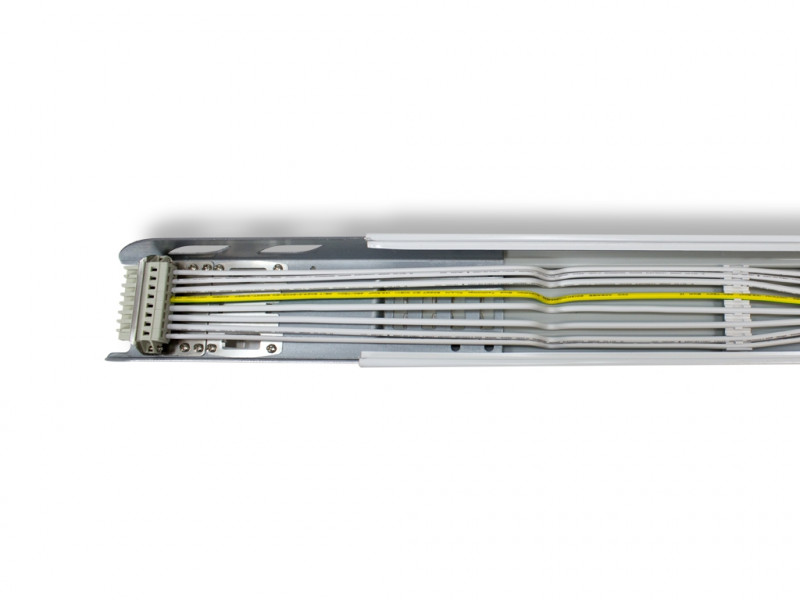

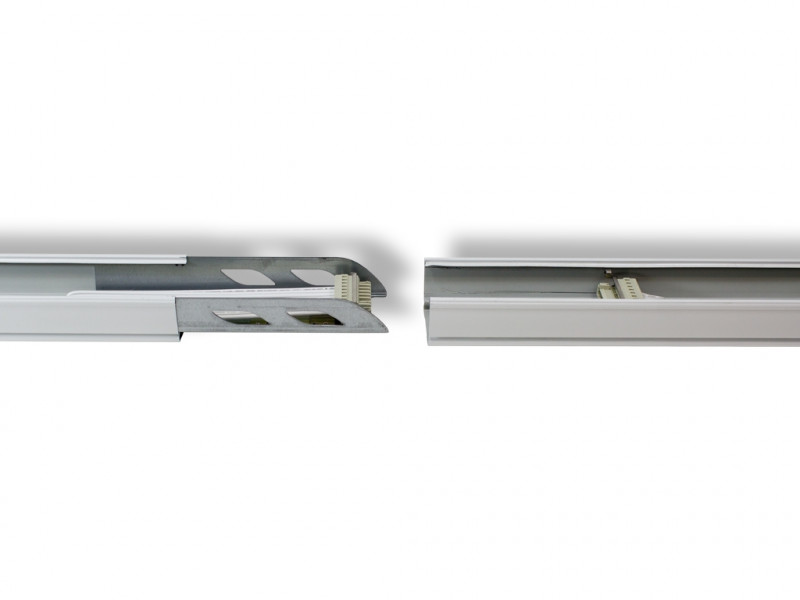

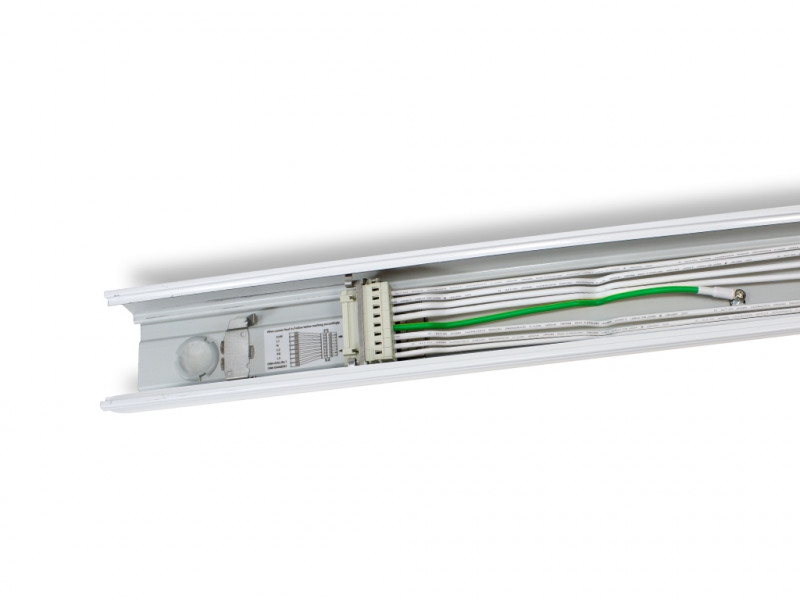

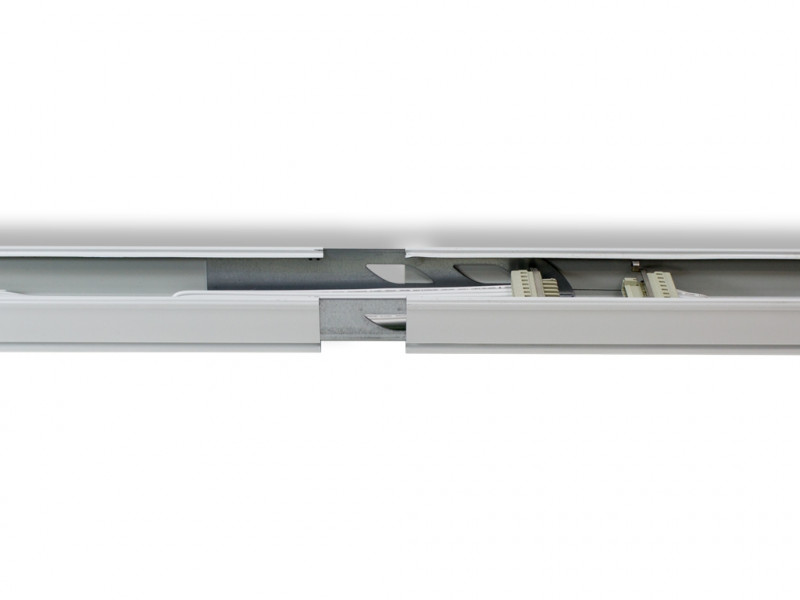

The trunking rail is a support profile with a 5-, 8- or 12-wire internal wiring. By means of integrated connectors and mechanical fork connection, several profiles can be connected without tools in a very short time.

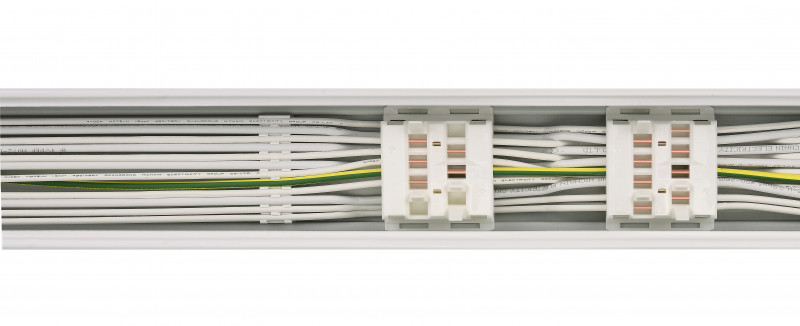

Via vertical connectors, the luminaire modules are supplied with control signals and 230V power. Each luminaire module can be individually powered by one of the three internal 230V phases via a phase selector so that different lighting zones can be created or in daytime operation the luminous intensity can be adapted to the daylight conditions and avoid unnecessary electricity costs. The assignment of the individual wires can be found in our Maxima Basic brochure.
Related links to "Xona Maxima Basic TRUNKING RAIL 1U-150"
Technical Details:
Dimensions: 1499x69x41 mm
Housing Color white
Housing Material: steel
Special Feature of Housing: 12-core
Net Weight: 2000 g
Weight incl. Packaging: 2 kg
Product Line: Advance Line
Customs Tariff Number: 9405409990
Certifications CE
Barcode: 4250557814490
