Preview: Lunara Clou 60-100/830-850-15000lm BEG 150lm/W

Lunara Clou 60-100/830-850-15000lm BEG 150lm/W

Product Info (PDF)

Order number: LG11130

Available soon

Prices are only visible after login.

Availability: Delivery time 3-8 working days

Dimensions

Menü schließen

Order number: : LG11130
Luminous Flux: 15000 lm
Power Draw: Power Select (60, 80, 100 W)
Light Color: CCT Select (3000, 4000, 5000 K)
Input Current: AC 220-240V, 0,125-0,5mA, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 66 (66 room side)

Beam Angle: 150x80°
LED-Chip: Shineon SMD 3030
Housing Color: dunkel silvergrey
Dimensions: 333x302x59 mm
Warranty: 5 years

Luminous Flux

15000
lm

Power Draw

100 W

Light Color

3000, 4000, 5000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 66

IP Class Room Side

IP 66
room side

Beam Angle

150x80°

ceiling, wall

mounting type

Dimensions

(LxBxH) in mm
333x302x59

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Smart LED Flood Light Litegear® Lunara Clou is a compact LED outdoor floodlight with... more

Close menu

Product information "Lunara Clou 60-100/830-850-15000lm BEG 150lm/W"

Smart LED Flood Light

Litegear® Lunara Clou is a compact LED outdoor floodlight with a excellent performance to price ratio. High Efficency 140-150 Lumen/Watt. Due to the use of alluminum dicast housing, Lunara has a excellent thermal management and weater resistance. Lunara Clou is the perfect solution for use in factories, gardens, parking area, architectural applications or mobile for construction work. You can use it permanently outside in rough environment conditions. We use very efficient SMD3030 LED chips with a high light output. SMD chips have a optimized heat dissipation to guarantee a long lifespan. Lunara floodlights are perfect to exchange traditional halogen R7s floodlights and metall halide lamps. They can save up to 90% electricity costs. A quick Return on Investment is guaranteed.

A unique and helpful feature is the power select function and the switchabel light colour CCT select. A great "OneFitAll®" Product
Dimmable via 0-10V signal
Auxiliary power for sensor: 12V 0,2A DC

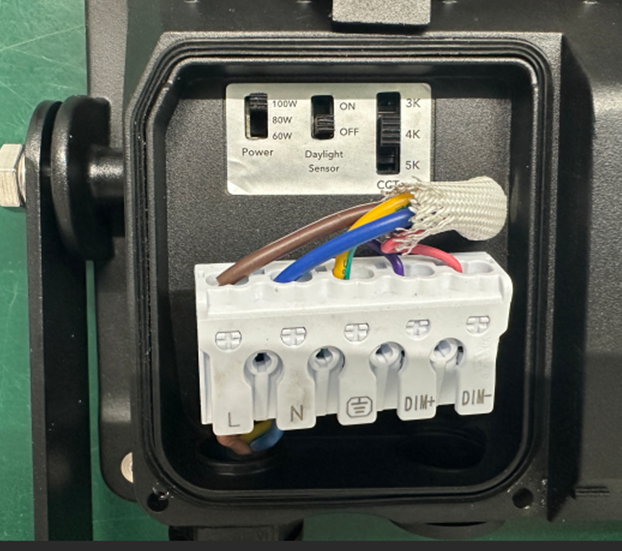

internal 5 wire terminal for loop in/out

Related links to "Lunara Clou 60-100/830-850-15000lm BEG 150lm/W"

Zurück

Technical Details:

Luminous Flux:	15000 lm
LED Output:	100 W
Light Yield:	150 lm/W
Light Temperature:	3000, 4000, 5000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4

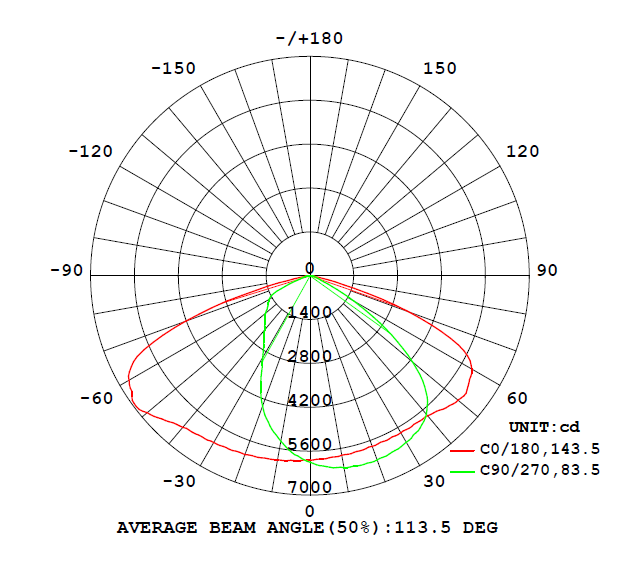

Beam Angle:	150x80 °
Light Emission:	sideward
Dimmable:
Method of Dimming:	0-10V,PWM,Poti
LED-Chip Manufacturer:	Shineon
LED-Chip:	SMD 3030
Number of LED:	190
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220-240V, 0,125-0,5mA, 50/60Hz
Power Consumption:	Power Select (60, 80, 100 W)
Contains Driver:
Driver Manufacturer:	Sosen
Power Factor (PF):	>0.95
Input Driver:	cable with flying leads
Output of Driver:	DC 150-280V
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Terminal
Switching Cycles:	>200.000
Electrical Protection Class:	I
Compatible with Emergency Current:
Ambient Temperature (TA):	-40°C - 50°C
Storage Temperature:	-40°C - 80°C

Dimensions:	333x302x59 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
Pivot Range tilt:	90 °
IP Class:	66 (66 room side)
IK Code:	08
Housing Color	dunkel silvergrey
Housing Color (RAL Code):	similar 9006
Housing Material:	aluminum
Coating:	powder-coated
Cover:	clear
Net Weight:	2700 g

Type of Packaging:	box
Dimensions of Packaging:	390x335x93
Weight incl. Packaging:	3.7 kg
Content Master Package:	1
Dimensions of Master Package:	390x335x93 mm
Weight Master Package:	3,7 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>100.000 h L80/B10
Disposal Obligation:
Customs Tariff Number:	9405499090
Certifications	CE,LM80
Barcode:	4250557827582
High System Efficency: 140-150 Lumen/Watt
Dimmable 0-10V + 12V 0,2A DC Aux out for Sensor
max. 150lm/W BEG förderfähig
Anschlußterminal 5-polig

Technical Data Sheet (PDF)

Zurück

kompakter LED-Strahler aus Aluminiumdruckguss-Gehäuse, stoß- und erschütterungsfest, mit IP65 more

Zurück

kompakter LED-Strahler aus Aluminiumdruckguss-Gehäuse, stoß- und erschütterungsfest, mit IP65
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -40°C - 50°C
Lichtstrom: 15000 lm
LED-Leistung: Power Select (60, 80, 100 W)
Leuchten-Lichtausbeute: 150 lm/W
Farbtemperatur: 3000, 4000, 5000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 150x80°
Lichtaustritt: direkt
Maße: 333x302x59 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66 (IP66 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: dunkel silvergrey (9006)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 2700 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 100000 h
